Characteristic

◆ Conductor: multiple grade 4N anaerobic copper wire formed by multiple strands

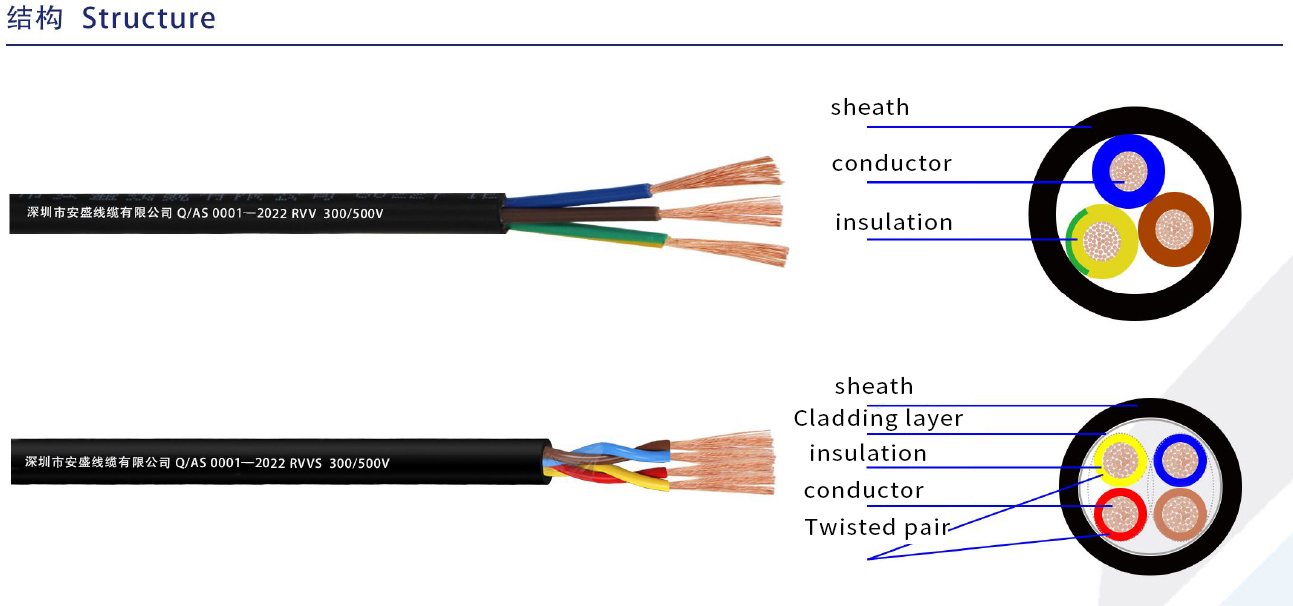

◆ Build: AVVR is right stranded; AVVRS to the twisted pitch <insulation

◆ Insulation: PVC / C

Outer diameter 16, the cable pitch <the diameter of the cable 8

◆ Cover case: PVC / ST4

◆ Fill: optional; coating: optional ◆ core number: 2~50 cores ◆ shield: none

◆ Square number of conductor: 0.12~0.4mm²◆ rated voltage 300 / 300V

◆ Common sheath color: black, white, gray ◆ long-term working temperature: should not exceed 70℃◆ execution standard: Q / AS 0002- -2022 ◆ core wire color: color

 Application

Q / AS 0002- -2022 standard copper core PVC insulated PVC sheath for flexible wire and cable for installation for electrical appliances, instruments and electronic equipment and automation devices with AC rated voltage of 300 / 300V and below. Can be used for factory equipment internal wiring, engineering wiring, etc.

Product test

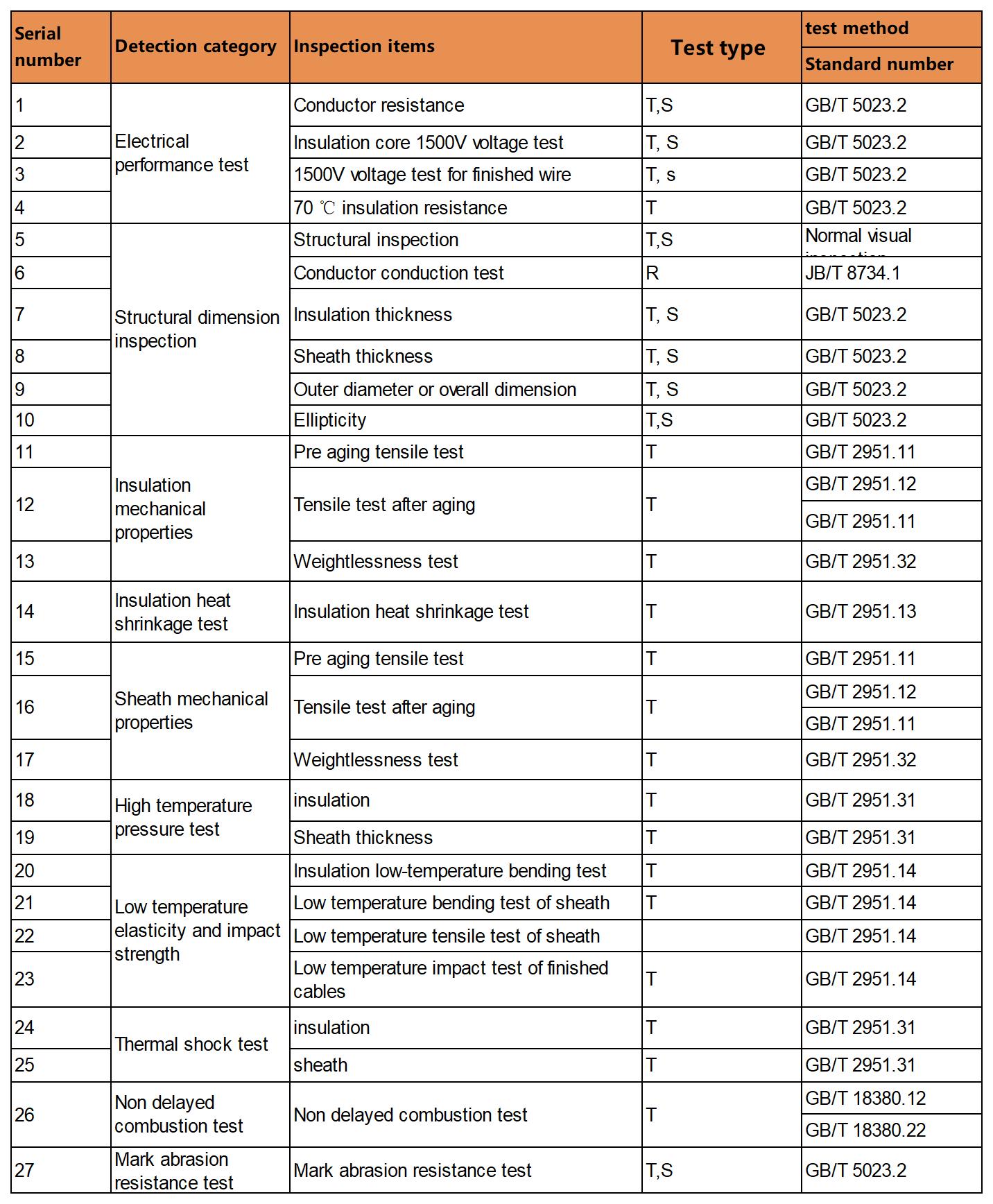

The inspection items, test types and test methods of AVVR and AVVRS products are specified in the following table.

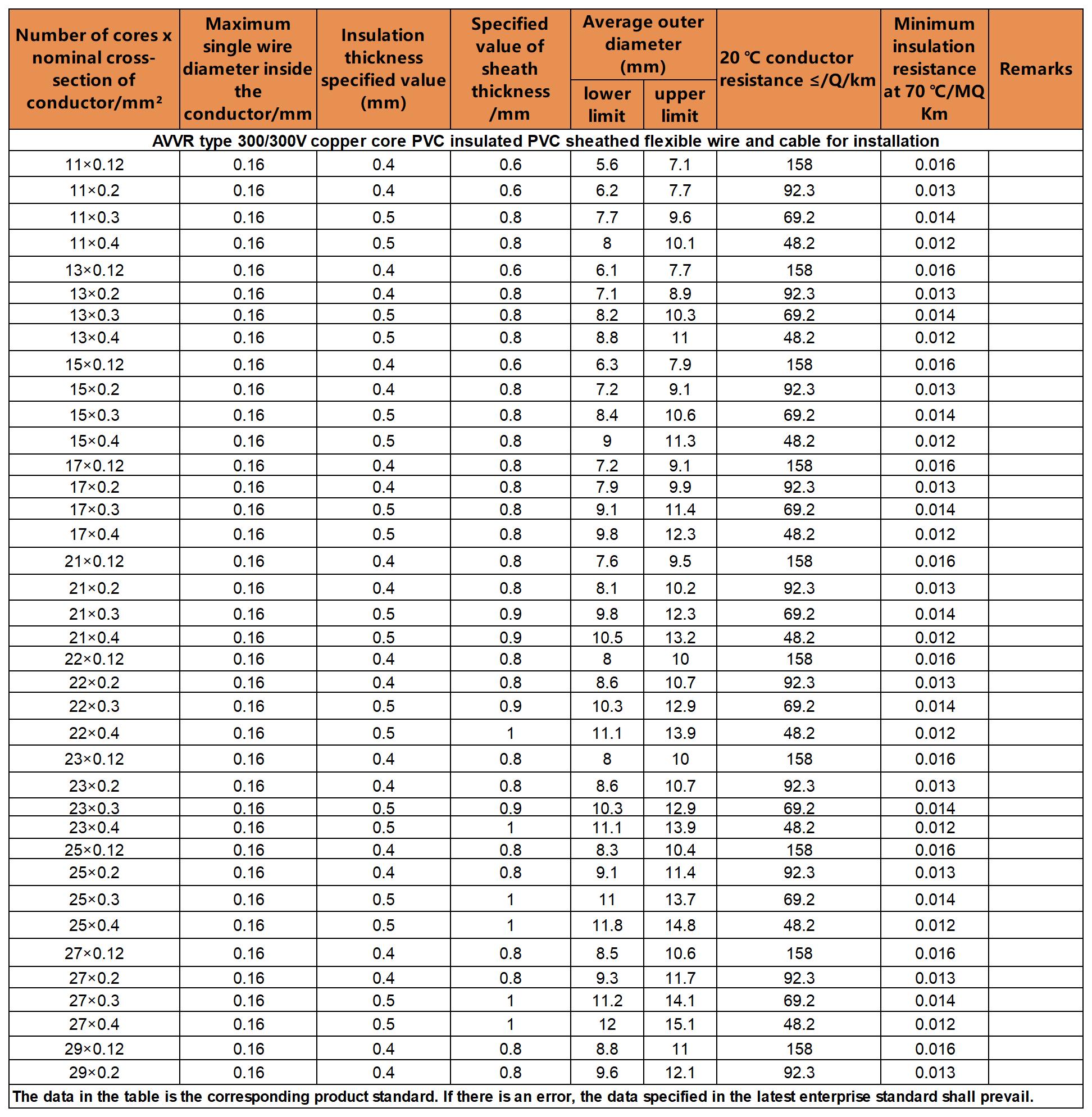

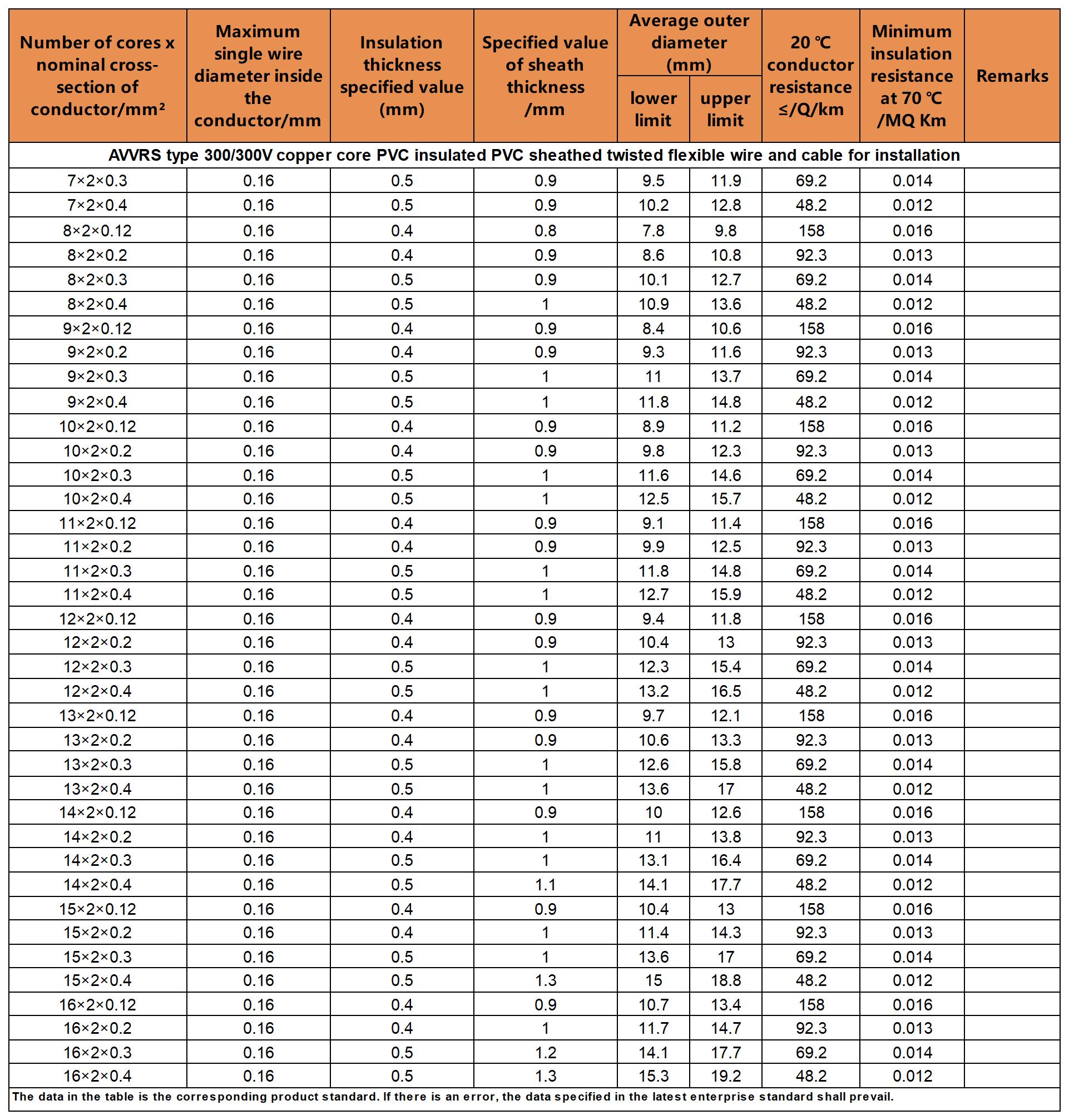

Technical parameters (for reference only) Construction
