Characteristic

◆ Conductor: multiple grade 4N anaerobic copper wire formed by multiple strands

◆ Cable: RVVP is right stranded; RVVPS to the twisted pitch <insulation

Outer diameter 16, the cable pitch <the diameter of the cable 8

◆ Insulation: PVC / D ◆ sheath: PVC / ST5

◆ Fill: optional; wrap: optional

◆ Shield: bare copper or tinned copper woven (can add aluminum foil or other coating)

◆ Core number: 1~50 cores

◆ Square conductor: 0.12 ~ 10 mm ²◆ rated voltage 300 / 300V

◆ Long-term working temperature: it should not exceed 70℃

◆ Common sheath color: black, white, gray core line color: color

◆ Implementation standard: Q / AS 0003- -2022

 Application

Q / AS 0003-2022 standard copper core and PVC insulated and PVC sheath shielding wire and cable, copper core insulated and PVC shielding wire and cable for electrical appliances, instruments and electronic equipment and automation devices. Can be used for factory equipment internal wiring, engineering wiring, etc.

Product test

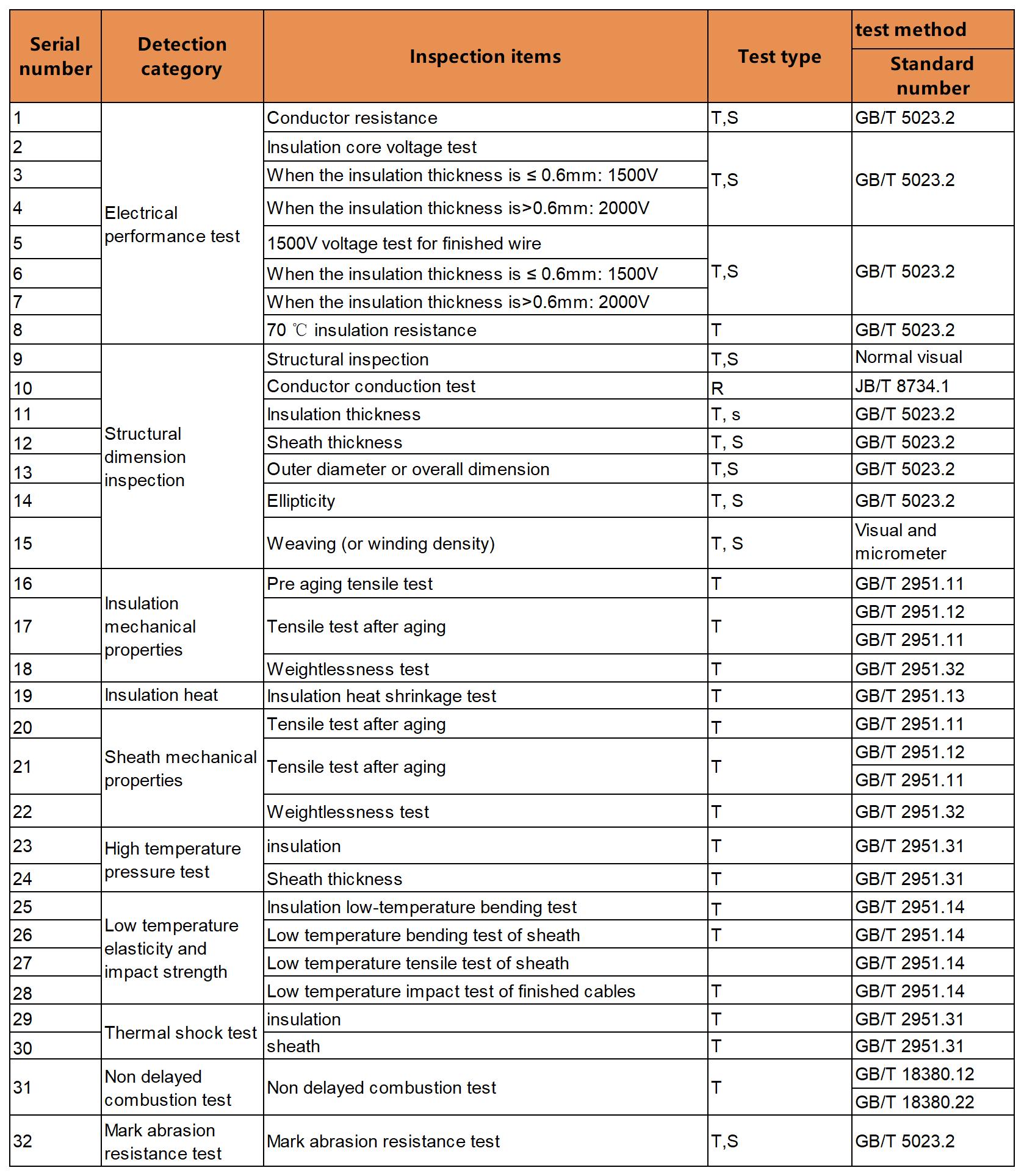

The inspection items, test types and test methods of type RVVP RVVPS products are carried out as specified in the table.

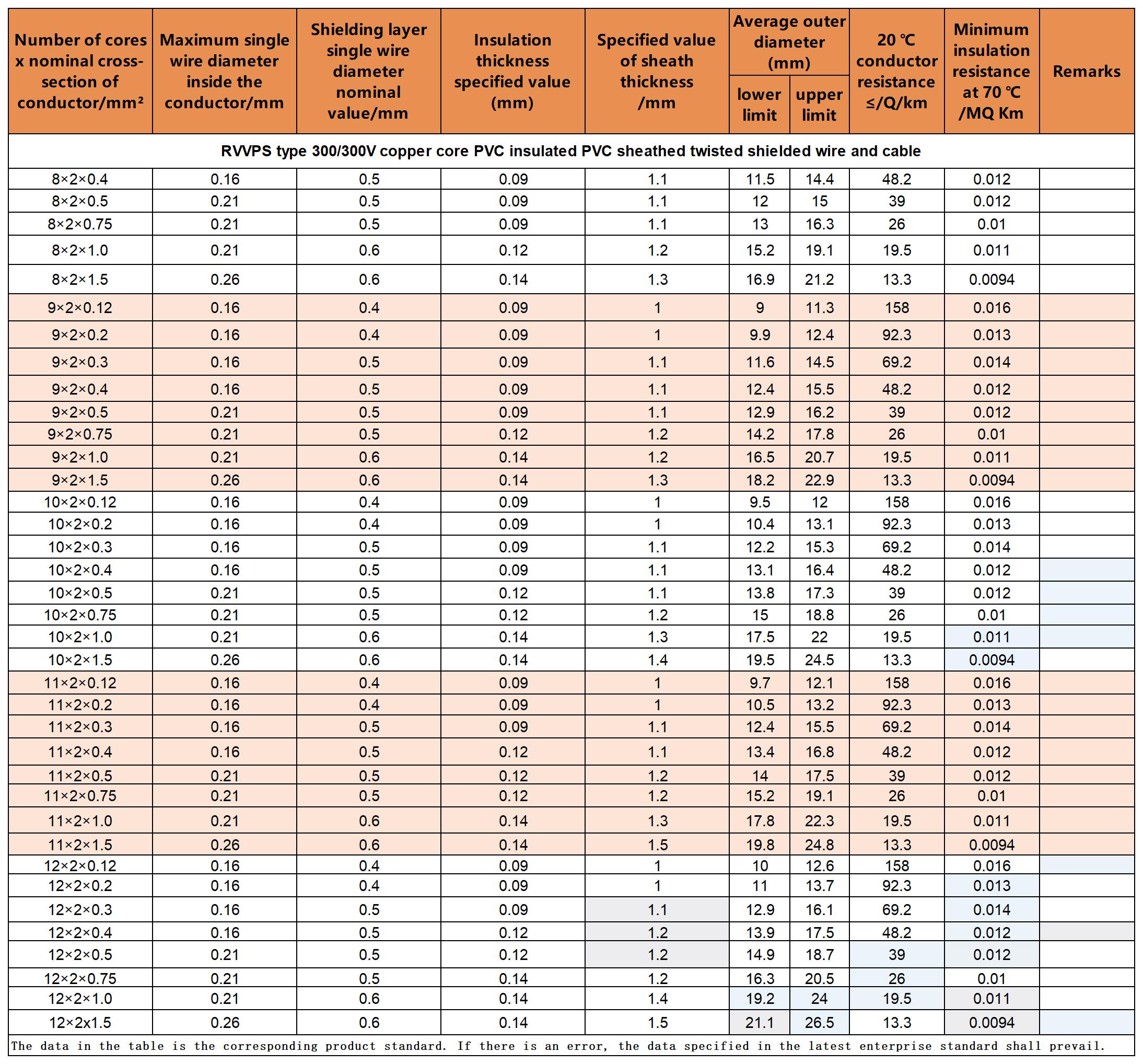

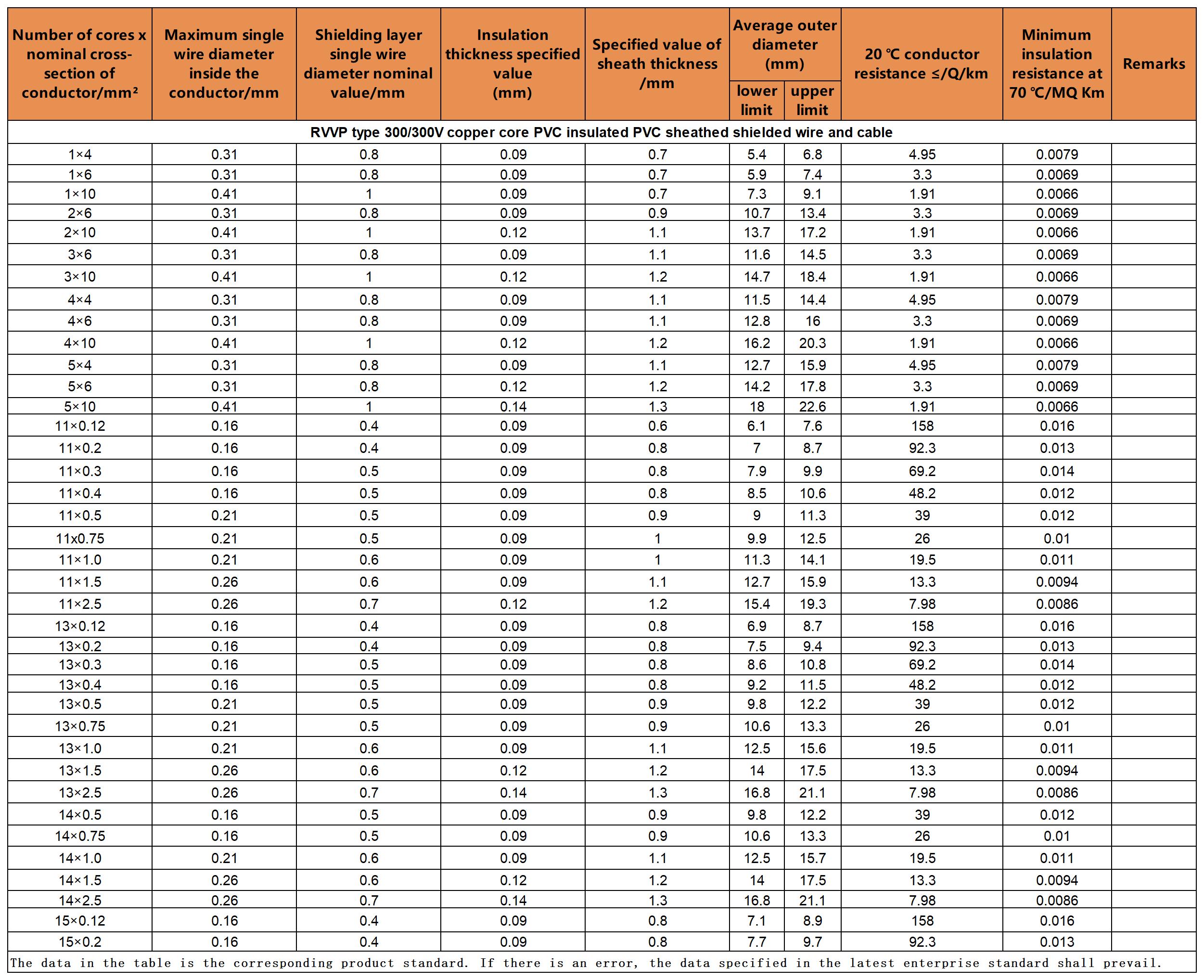

Technical parameters (for reference only)Construction
