Characteristic

◆ Conductor: multiple grade 4N anaerobic copper wire formed by multiple strands

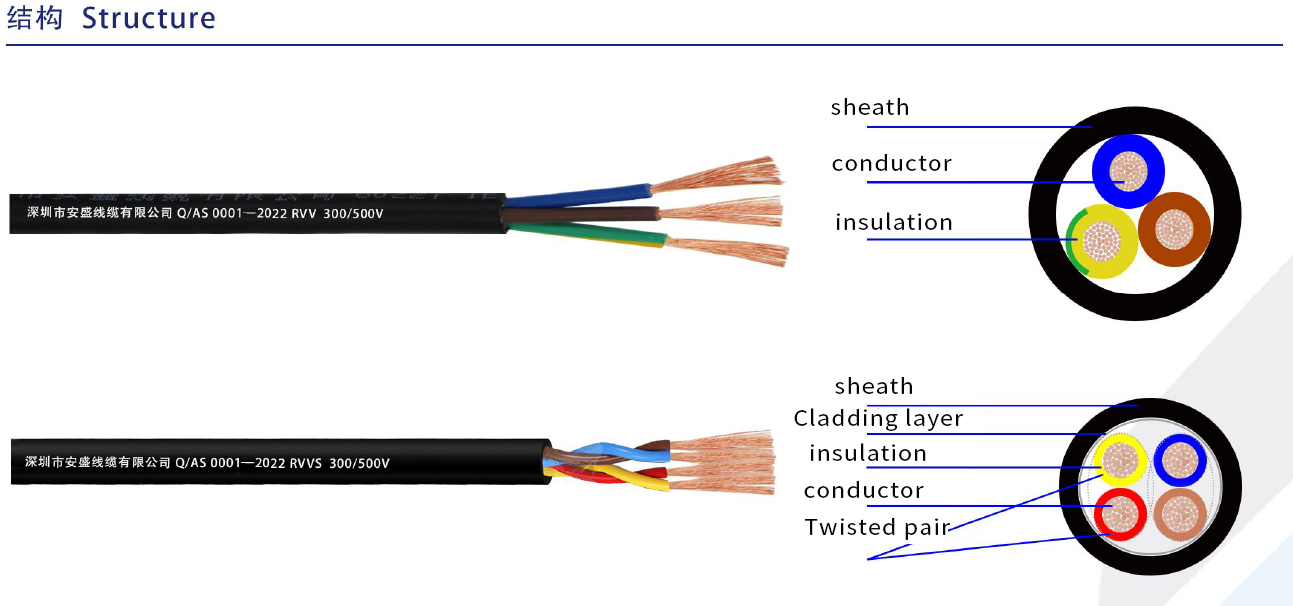

◆ Formation: RVV is right stranded; RVVS has less than insulated twisted pitch

Diameter 16, on the twisted cable pitch <cable diameter 8 ◆ insulation: PVC / D ◆ sheath: PVC / ST5 ◆ fill: optional ◆ shielding: no

◆ Number of cores: 2~24 cores ◆ rated voltage: 300 / 500V

◆ Number square: 0.5~6mm²

◆ Common sheath color: black, white, gray ◆ long-term working temperature: should not exceed 70℃ core wire color: color

◆ Implementation standard: Q / AS 0001- -2022

Apply the Application

Q / AS 0001- -2022 standard copper core PVC insulated PVC sheathed flexible wire and cable, suitable for copper core PVC insulated flexible wire and soft cable for electrical appliances, instrument and power lighting and electronic equipment automation devices with AC rated voltage of 300 / 500V and below. Can be used for factory equipment internal wiring, engineering wiring, etc.

Product test

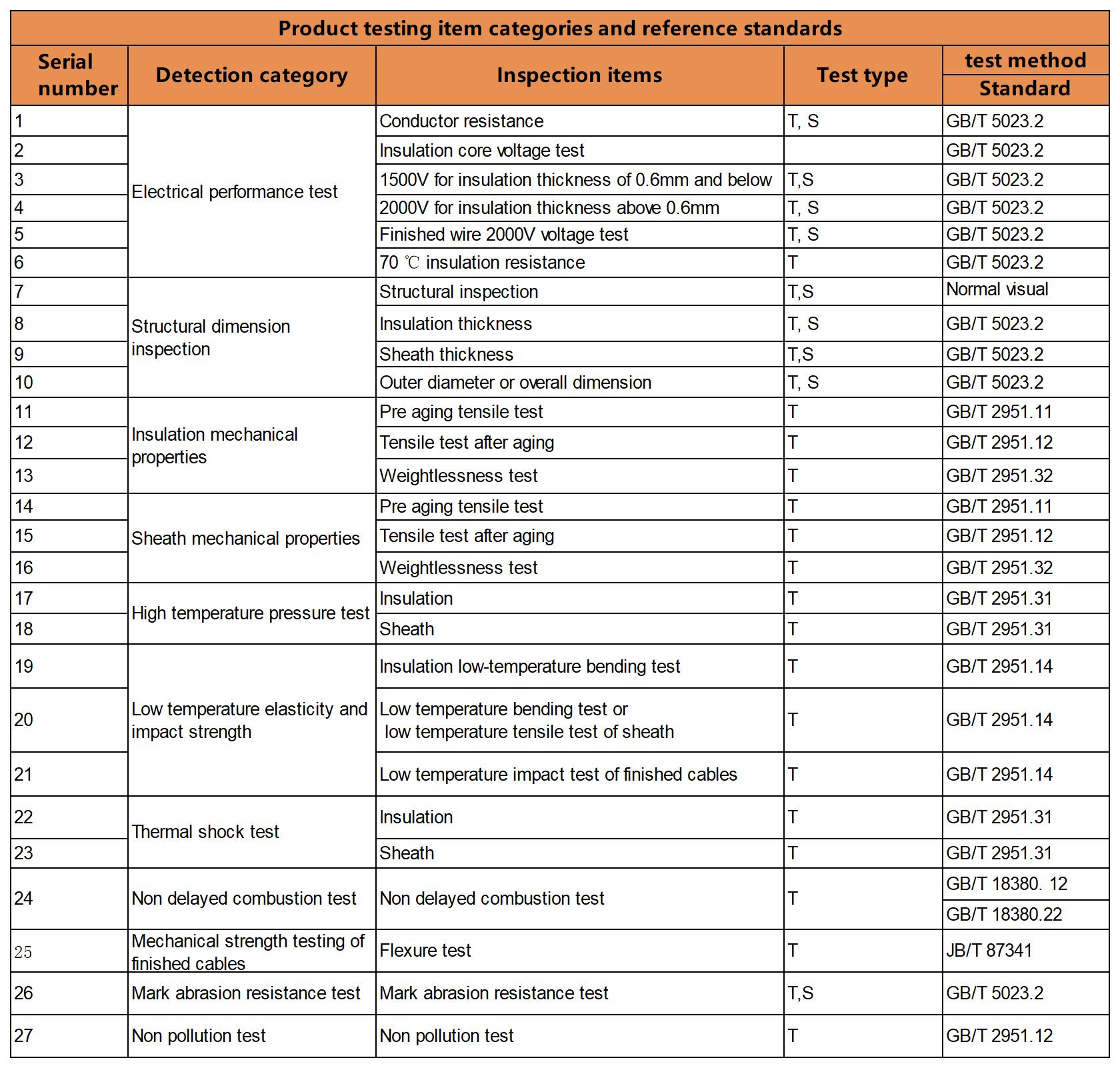

Product inspection items, test types and test methods shall be conducted as specified in the following table. RVV and RVVS finished flexible wire and cable shall be twisted test (only applicable to RVV and RVVS flexible cable with concentric twisted not more than 2 layers and core number not more than 18 cores), and the nominal section of RVV and RVVS finished flexible wire and cable with 1mm2 quality and pulley diameter as specified in the table.

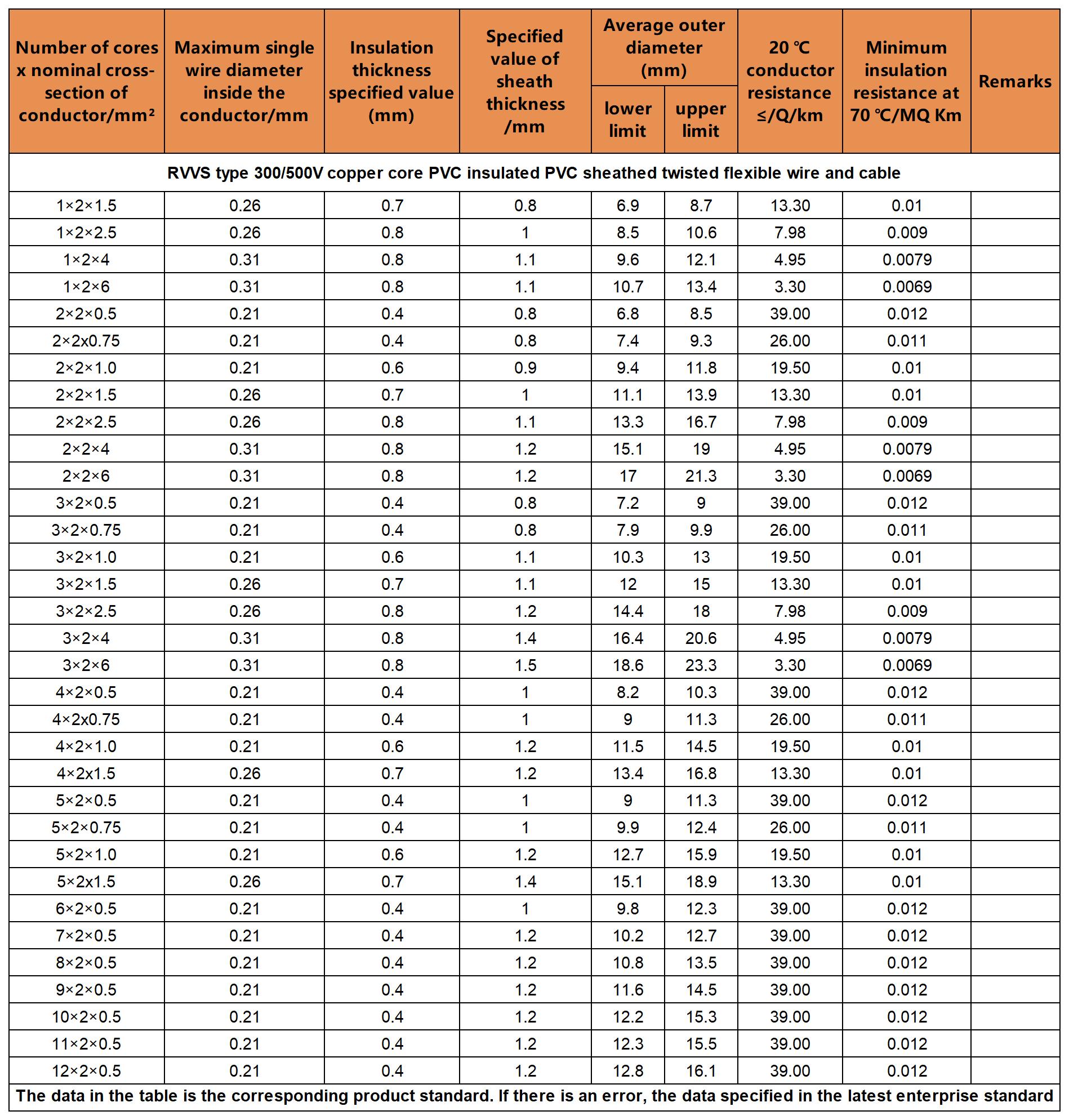

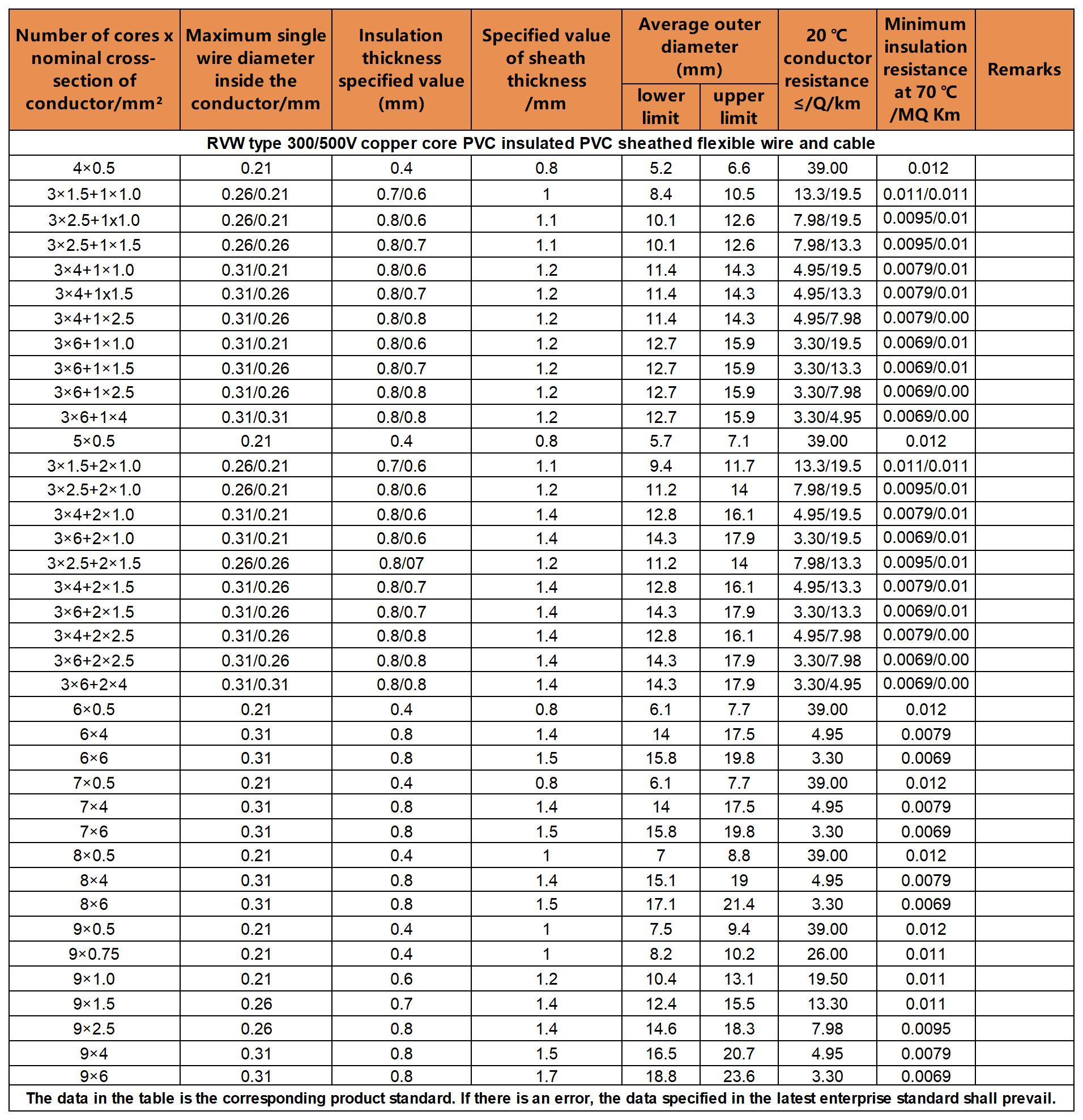

Technical parameters (for reference only) Construction
