Characteristic

◆ Core wire and finished product voltage test: 1500V / 5min / 10 mA or ◆ conductor: multiple 4N grade anaerobic copper wire stranded

1500V/5min/10mA

◆ Insulation: PVC / D; PVC / C (AVP); PVC / E (90 degrees)

◆ Fill: Selectable

◆ Cover: PVC / ST5 ◆ cores: 2~26 cores

◆ Shielding: tin copper or bare copper ◆ rated voltage 300 / 300V

◆ Cable: right twisted (RVVPS pitch <8)

◆ Common sheath color: black, white, gray ◆ Number of conductor squares: 0.08 ~ 4 mm ²◆ Execution standard: JB/T8734.5-2016

◆ RVVP 1 type shielding line is winding shielding, the standard is not listed, the corresponding data refer to RVVP type, the outer diameter is different.

Apply the Application

JB/T8734.5-2016 Standard PVC insulated PVC sheathed shielding wire, suitable for copper core PVC insulated shielding wire for electrical appliances, 300 / meters and electronic equipment with AC rated voltage 300 / 300V and below.

AVP-90, long-term RVP-90 should not exceed 90℃, and others should not exceed 70℃.

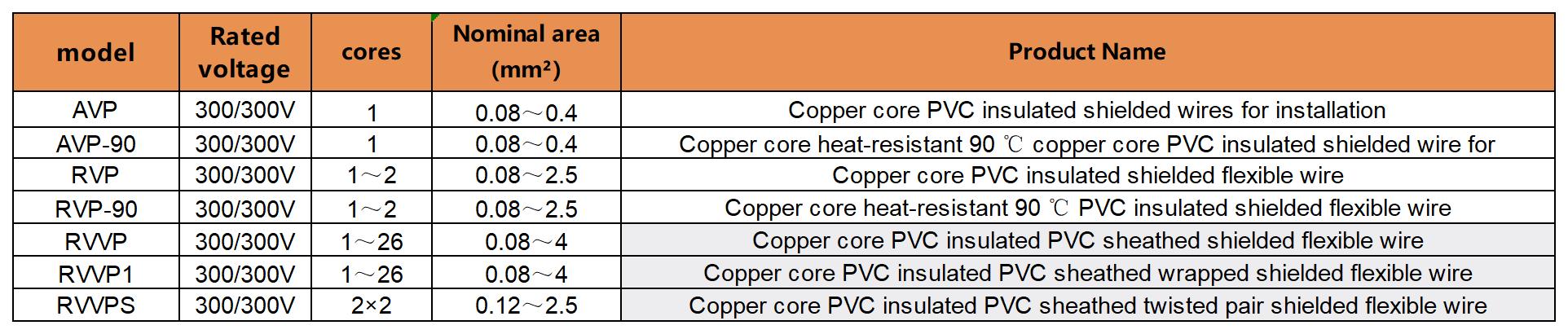

Reference model

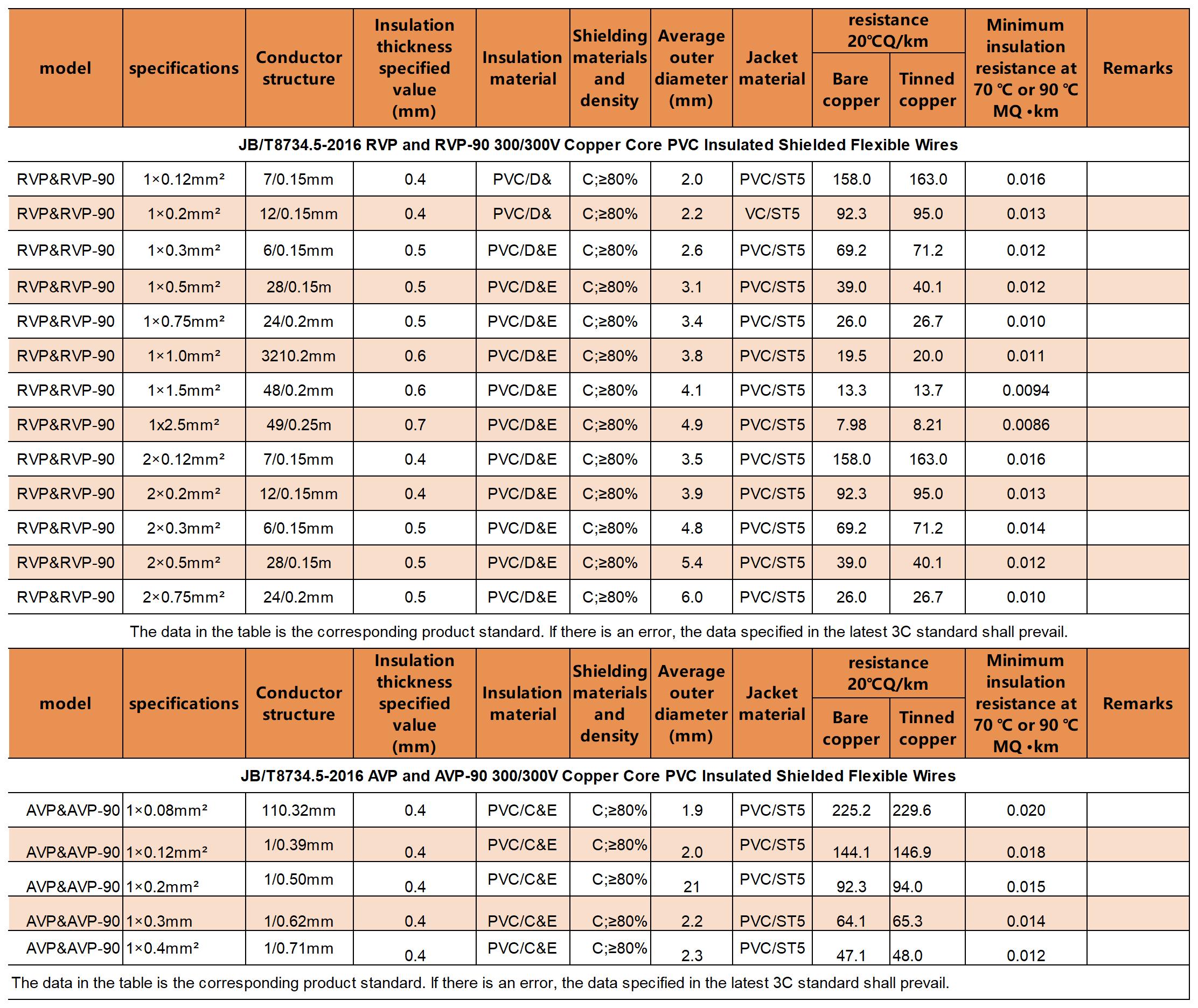

Technical parameters (for reference only)

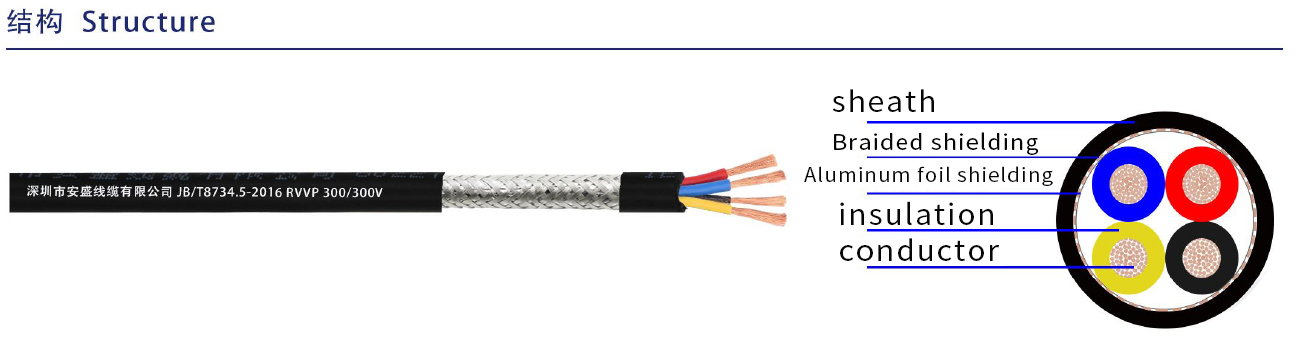

Construction
