Characteristic

Conductor: multiple 4N grade anaerobic copper wire stranded

◆ Core wire and finished product voltage test: 1500V / 5min / 10 mA or insulation: PVC / D (core wire color is color or monochrome code)

2000V/5min/10mA;2500V/5min/10mA

◆ Cover: PVC / ST5 ◆ Fill: optional

◆ Shield: aluminum foil shielding or tinned copper, bare copper woven shielding

Number of cores: 3~60 cores

◆ Rated voltage 300 / 500V; 450 / 750V ◆ stranded: grouped stranded ◆ conductor square number: 0.75~25mm²

Common sheath color: black, gray, orange

◆ Reinforcement: optional (stranded wire, tensile wire, etc.)

◆ Execution standard: GB/T5023.6-2006;JB/T8734.6-2012 ◆ Finished product shape: TVVB flat or TVV round

◆ Single or several common axis, optical cable, shielded signal lines can be added in the middle of the cable according to customer requirements.

◆ Bending test: mechanical winding mechanism test, instantaneous speed of 4 m/s², 1h (1500 ± 10) cycle (reciproc) movement.

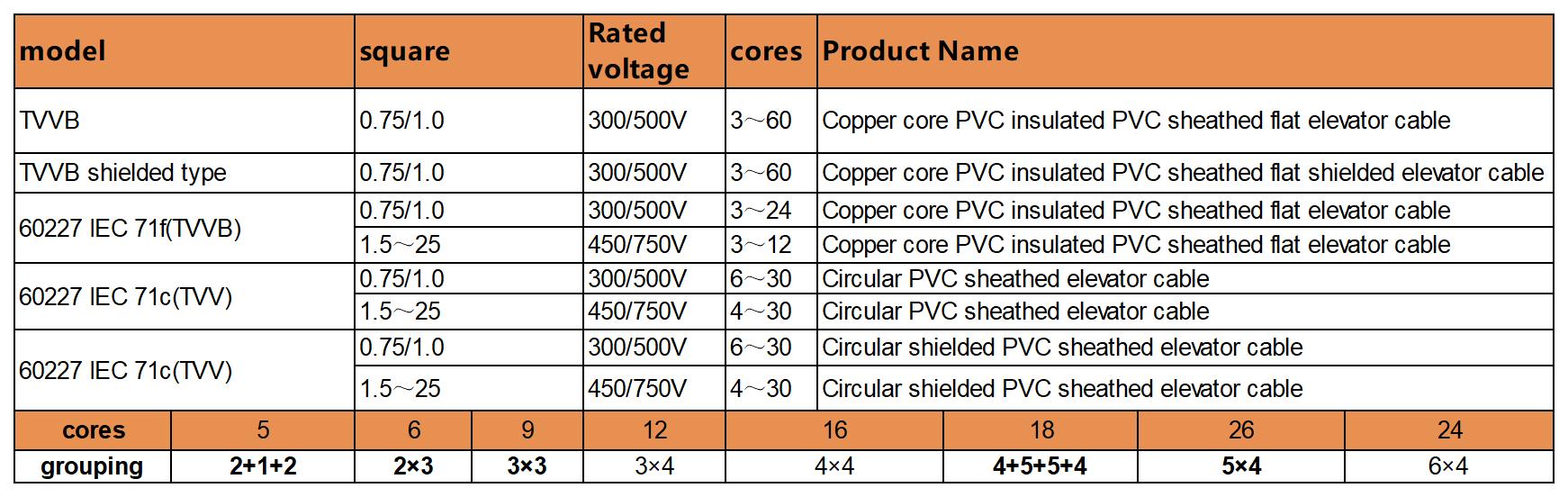

Model division: flat (TVVB); flat shield (TVVBP); flat + tensile steel wire (TVVBG); flat shield + tensile steel wire (TVVBPG) round (TVV); round shield (TVVP); round + tensile steel wire (TVVG); round shield + tensile steel wire (TVVPG)

 Application

GB/T5023.6-2006;JB/T8734.6-2012 Standard polyurethane insulated cable, suitable for AC frequency fixed voltage 450 / 750V and below the elevator with copper core PVC insulated PVC sheath flat (graphic) cable. It can also be used for lifting equipment, reciprocating motion track equipment, etc.

The voltage of cable limit is 300 / 500V below 1 square; 450 / 750V above 1 square. Long-term operating temperature should not exceed 70℃. Core line color is distinguished by color or monochrome coding mode.

 Reference model

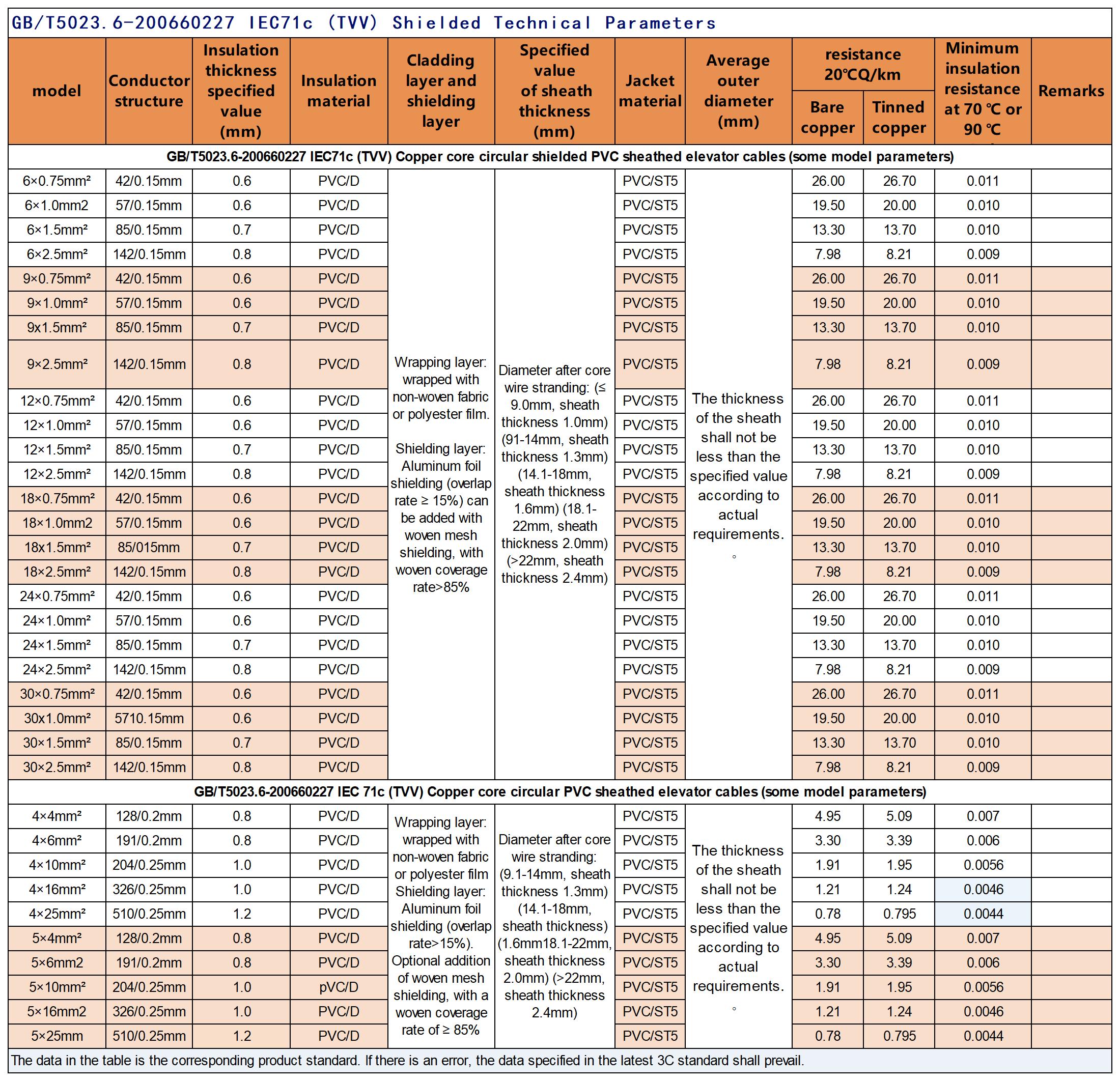

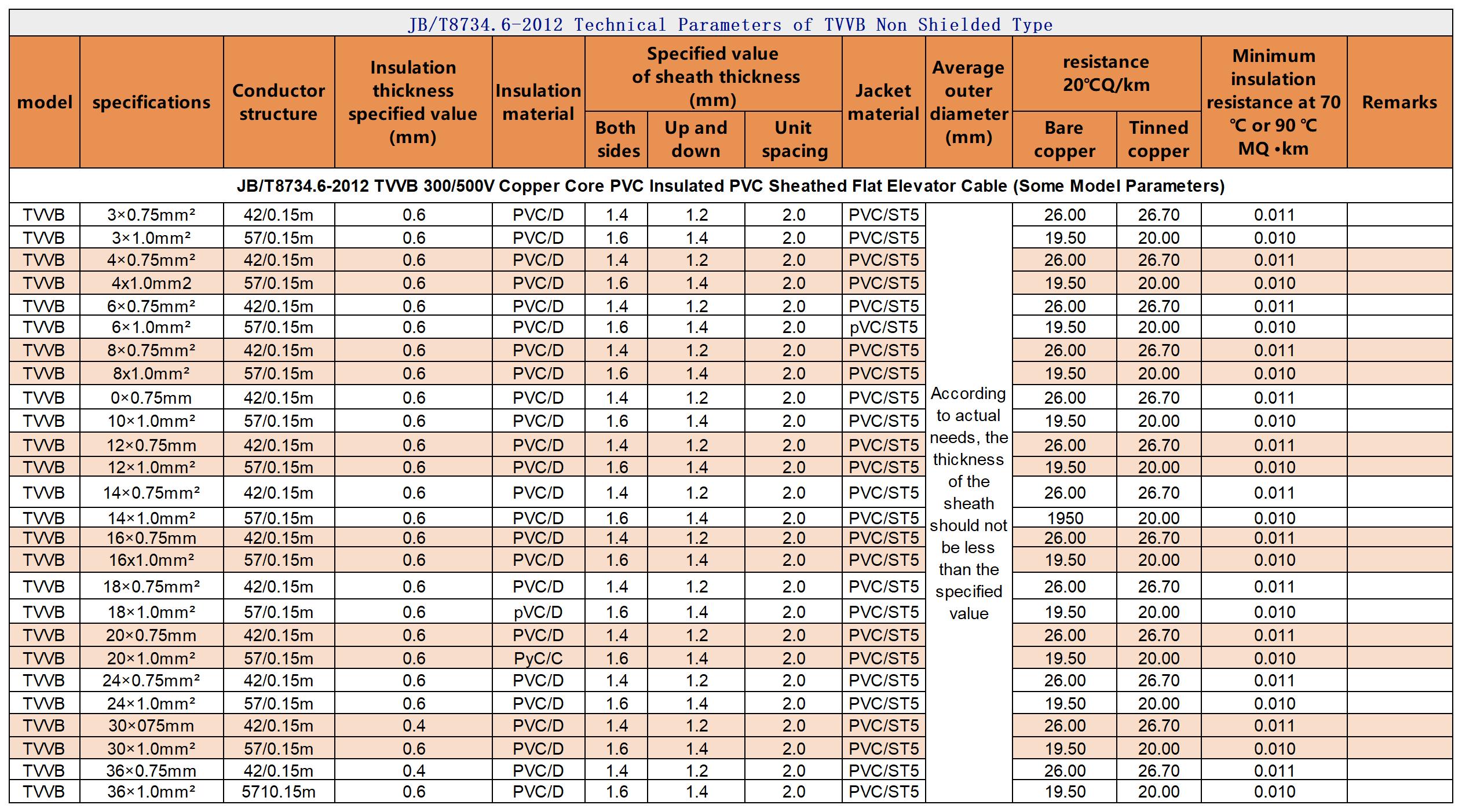

Technical parameters (for reference only)

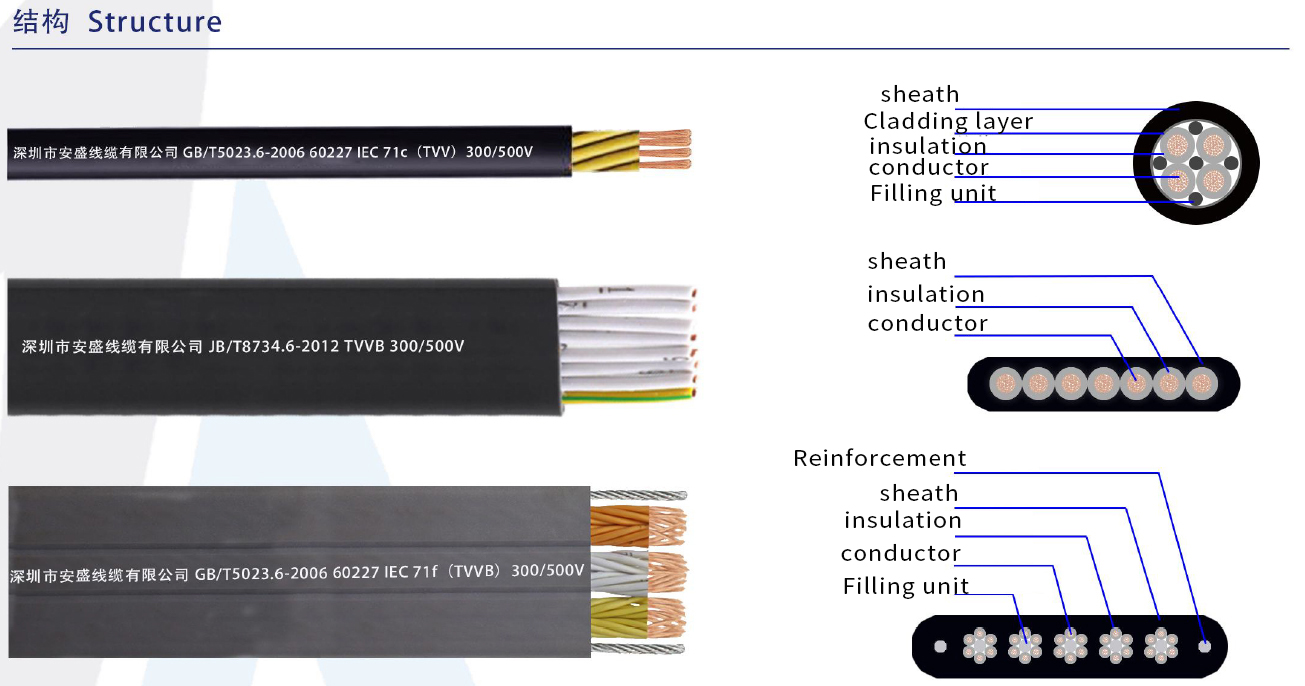

Construction
