Characteristic

◆ Conductor: multiple 4N grade anaerobic copper wire stranded

◆ Core wire and finished product voltage test: 1500V / 5min / 10 mA or 1500V / 5min / 10 mA ◆ insulation: PVC / D ◆ Fill: optional

◆ Cover: PVC / ST5 ◆ Shield: none

◆ Core number: 2~41 cores

◆ Rated voltage 300 / 300V; 300 / 500V ◆ cable: right stranded ◆ conductor square number: 0.5~10mm²

◆ Common sheath color: black, white, gray

◆ Execution standard: JB/T8734.3-2016 or GB/T5023.5-2008

Apply the Application

JB/T8734.3-2016, GB/T5023.5-2008 Standard PVC insulated cable, suitable for copper core PVC insulated cable for electrical appliances, instruments and power lighting and electronic equipment with AC rated voltage of 300 / 500V and below.

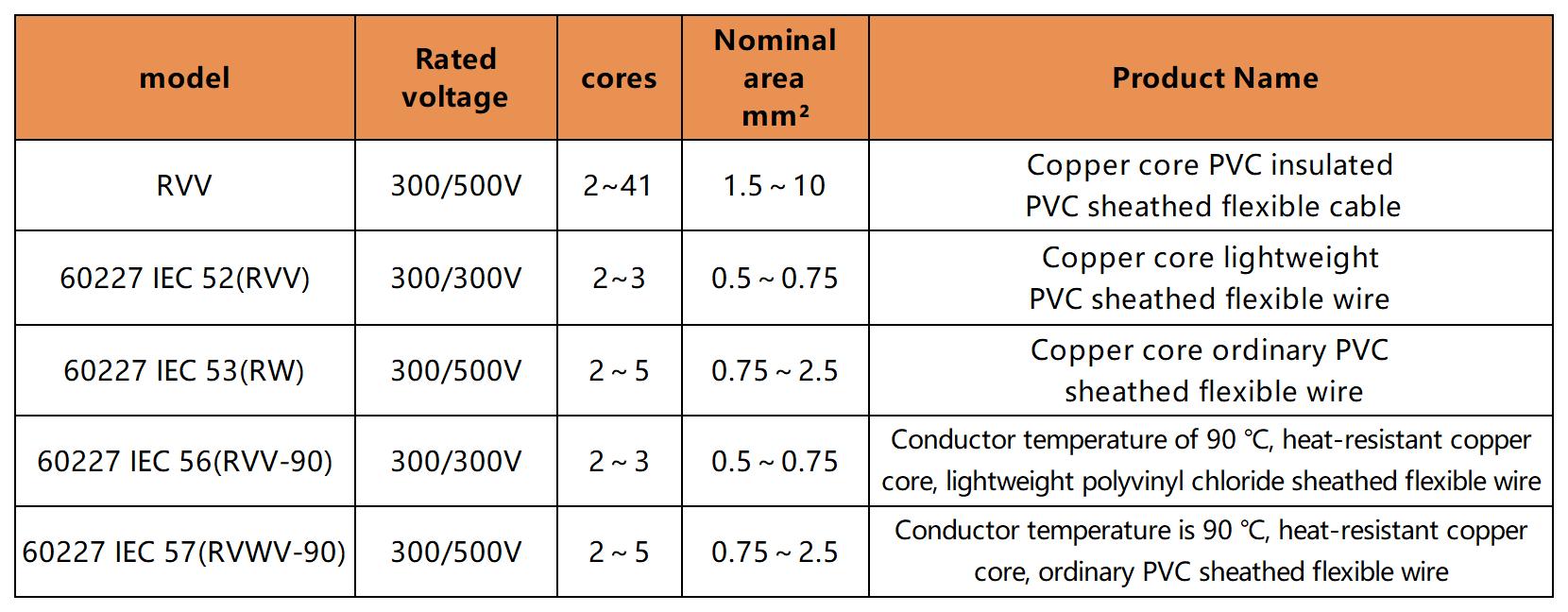

 Reference model

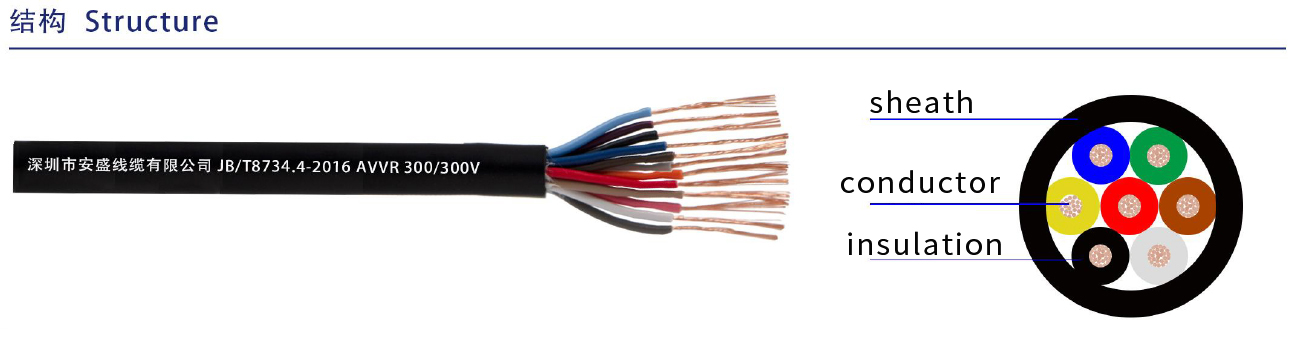

Construction

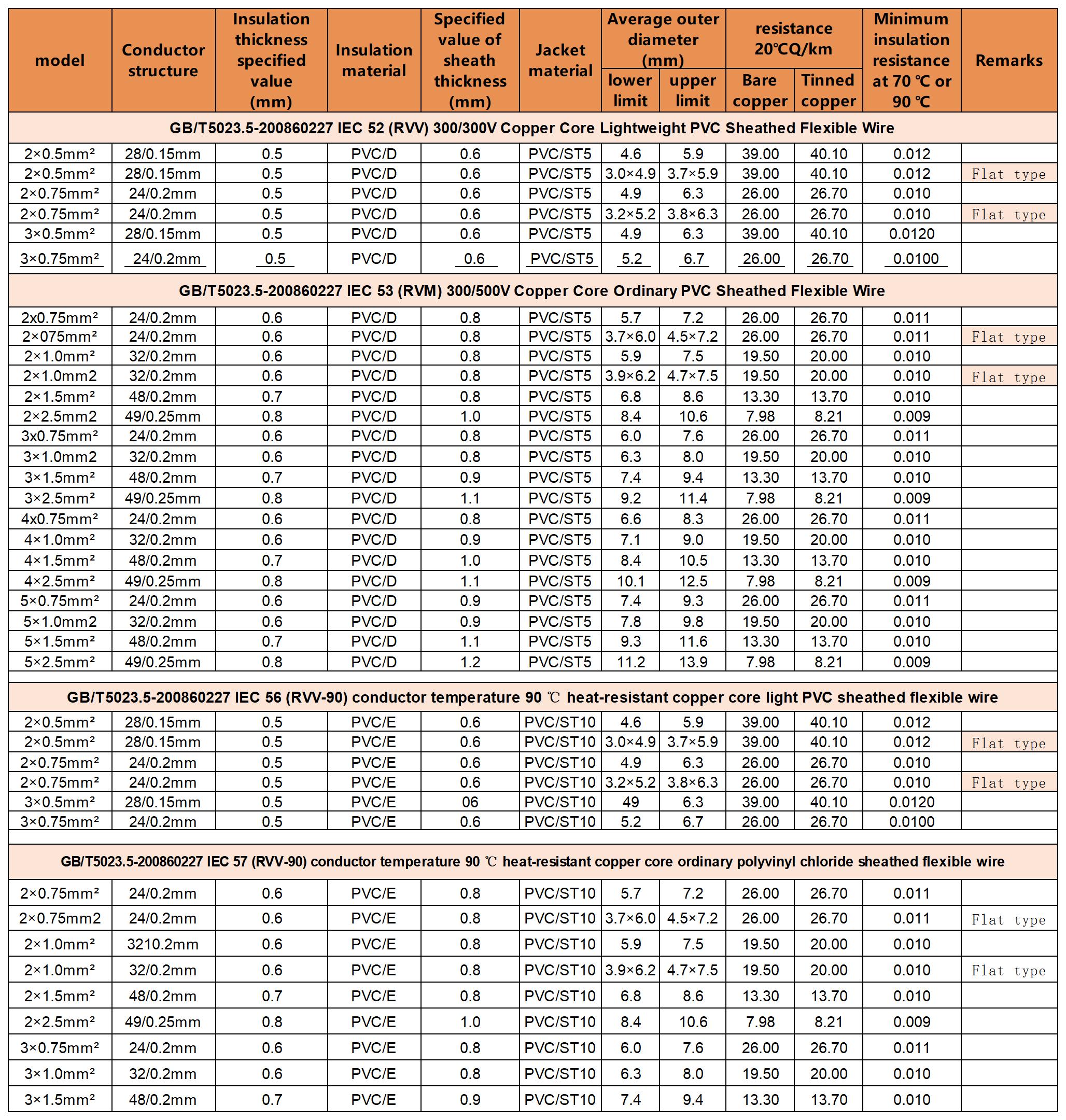

Technical parameters (for reference only)
