Characteristic

Conductor: multiple 4N grade anaerobic copper wire repeatedly stranded into ◆ finished product voltage test: 2000V / 5min / 10 mA or 1500V / 5min / 10 mA

◆ Insulation: PVC / C or PVC / D

◆ Package: no fill: no core number: 2 cores

◆ shielding: no

Stringing: 2 cores right direction twisted, pitch <average outer diameter 8

◆ Rated voltage of 300 / 300V

◆ Common color: red + yellow; red + blue; red + black ◆ conductor square number: 0.12~6mm²

◆ Execution standard: JB/T8734.4-2016 or JB/T8734.3-2016

Apply the Application

JB/T8734.4-2016 And JB/T8734.3-2016 standard PVC insulated cable wire and flexible cable, suitable for copper core aggregate ethylene insulated connection flexible wire and flexible cable for electrical appliances, instruments and power lighting and electronic equipment automation devices with AC rated voltage of 300 / 500V and below. Mainly used for fire protection system engineering wiring.

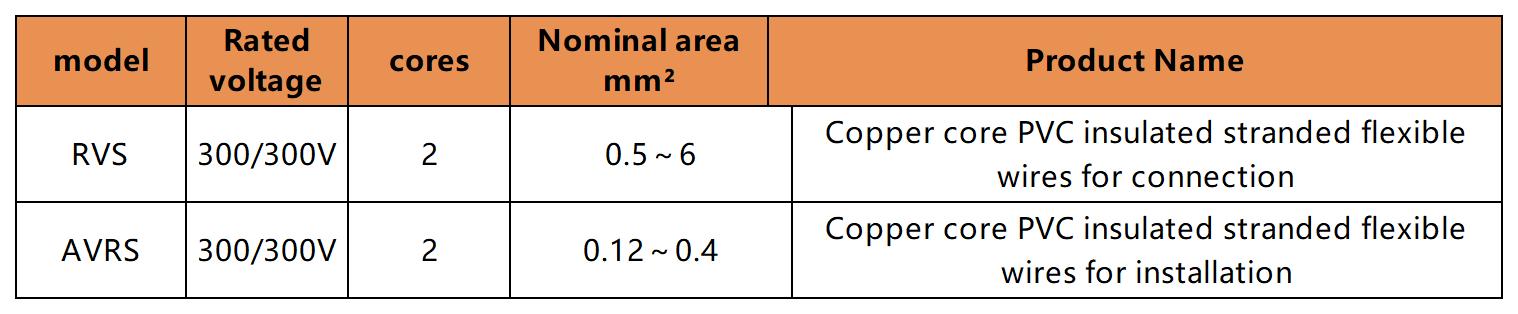

 Reference model

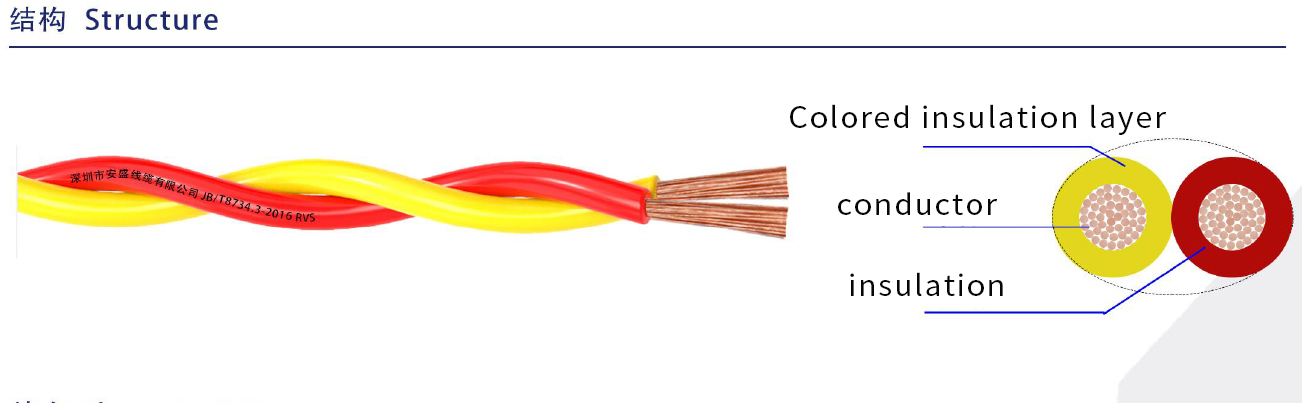

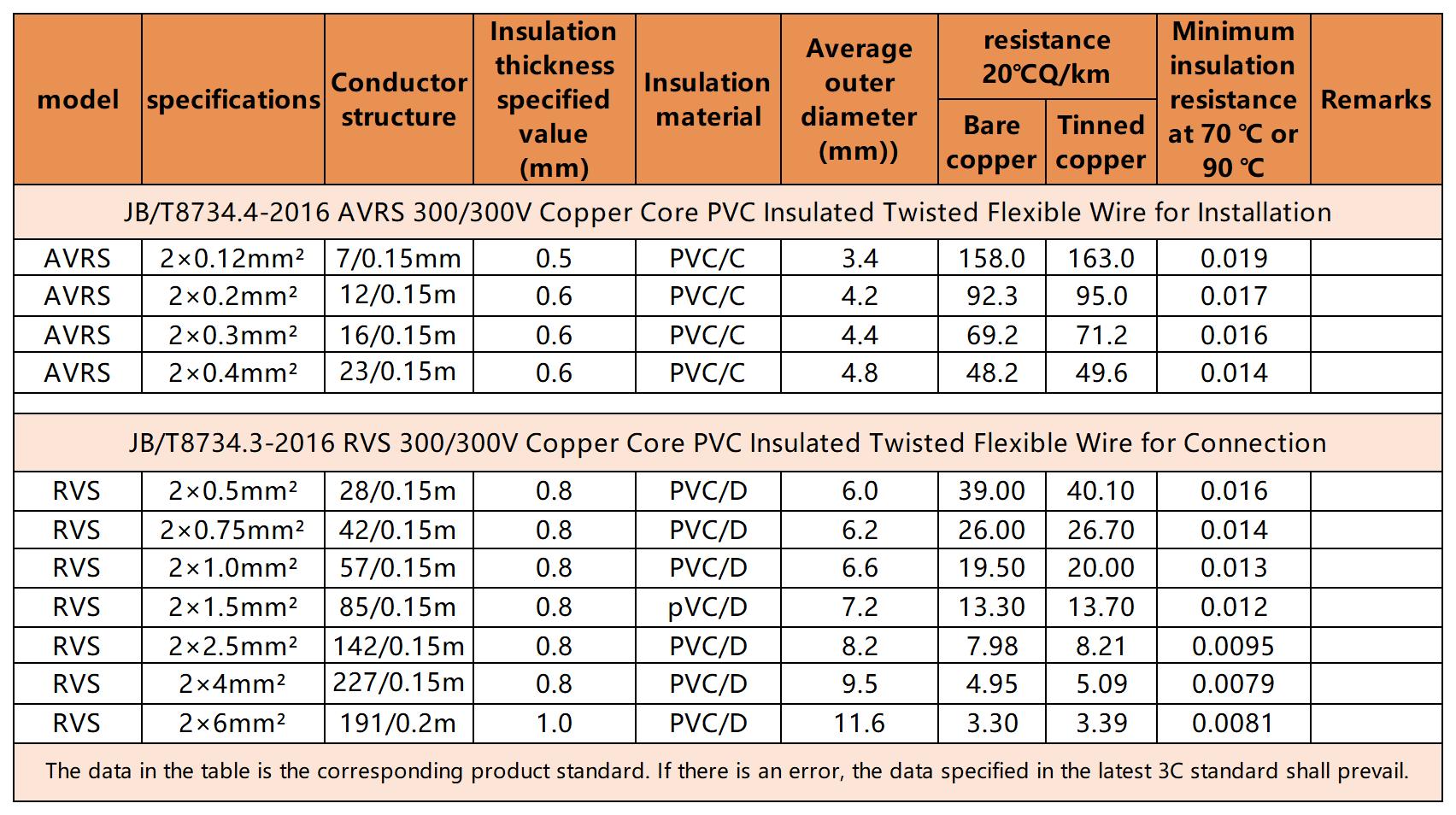

Technical parameters (for reference only) Construction
