Characteristic

◆ Conductor: multiple 4N grade anaerobic copper wire repeatedly stranded into the finished product voltage test: 2000V / 5min / 10 mA or 1500V / 5min / 10 mA

◆ Insulation: PVC / C or PVC / D

◆ package: No

◆ Fill: no core number: 2 core ◆ shield: no

◆ Rated voltage of 300 / 300V

◆ Number of number: 0.12~6mm²

Execution criteria: JB/T8734.4-2016 and JB/T8734.3-2016

◆ Common color: red + black

Apply the Application

JB/T8734.4-2016 And JB/T8734.3-2016 standard PVC insulated cable wire and flexible cable, suitable for flexible wire and flexible cables for electrical appliances, instruments and power lighting and electronic equipment automation devices with AC rated voltage of 300 / 500V and below. Can also be used for smallpox speakers, background music wiring.

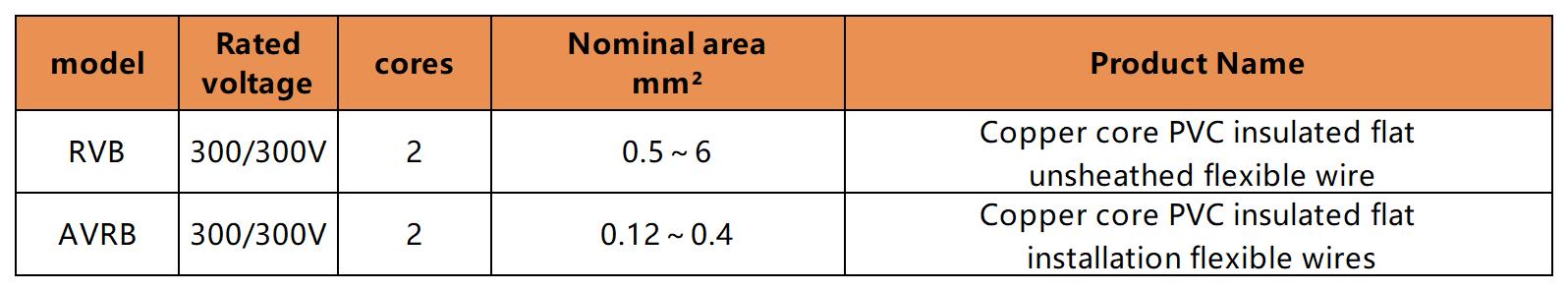

Reference model

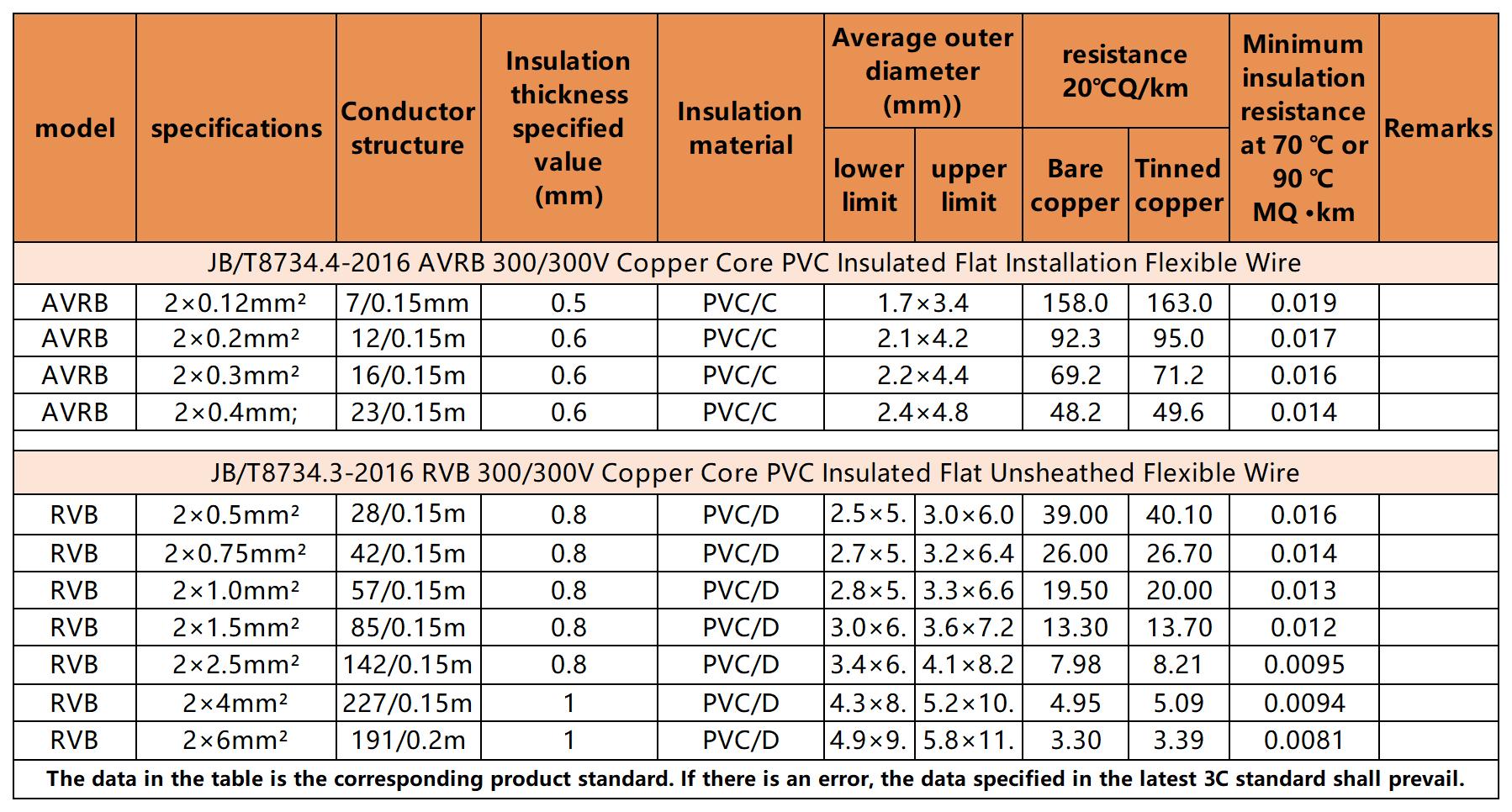

Technical parameters (for reference only) Construction
