Characteristic

◆ Finished product voltage test: 2500V / 5min / 10 mA

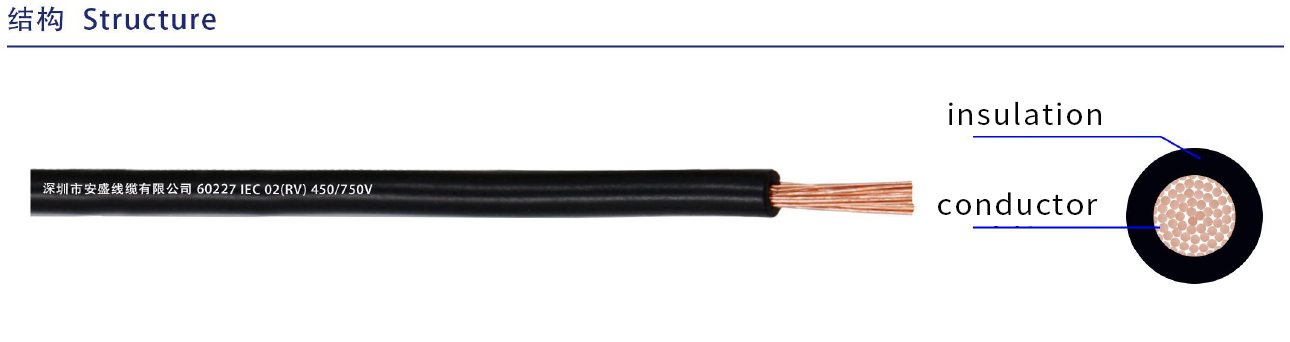

◆ Conductor: multiple 4N anaerobic copper wire formed by multiple strands

Or 2000V / 5min / 10 mA or 1500V / 5min / 10 mA

◆ Insulation: PVC / C (temperature resistance 70℃) or PVC / E (temperature resistance 90℃)

◆ Package: no ◆ fill: no ◆ shield: no

Number of ◆ cores: 1 core

◆ Square number of conductor: 0.08~95mm²

◆ Rated voltage of 300 / 300V or 300 / 500V or 450 / 750V ◆ Common color: 12 color full color

◆ Execution standard: JB/T8734.4-2016 or GB/T5023.3-2008 application Application

JB/T8734.4-2016, GB/T5023.3-2008 Standard PVC insulated cable for AC rated voltage of 300 / 300V or

Copper core wires for internal wiring for electrical appliances, instruments and electronic devices of 300 / 500V or 450 / 750V and below, and insulated and fixed cables for copper cores for power lighting.

Type AV-90.AVR-90 long-term working temperature should not exceed 90℃, other should not exceed 70℃

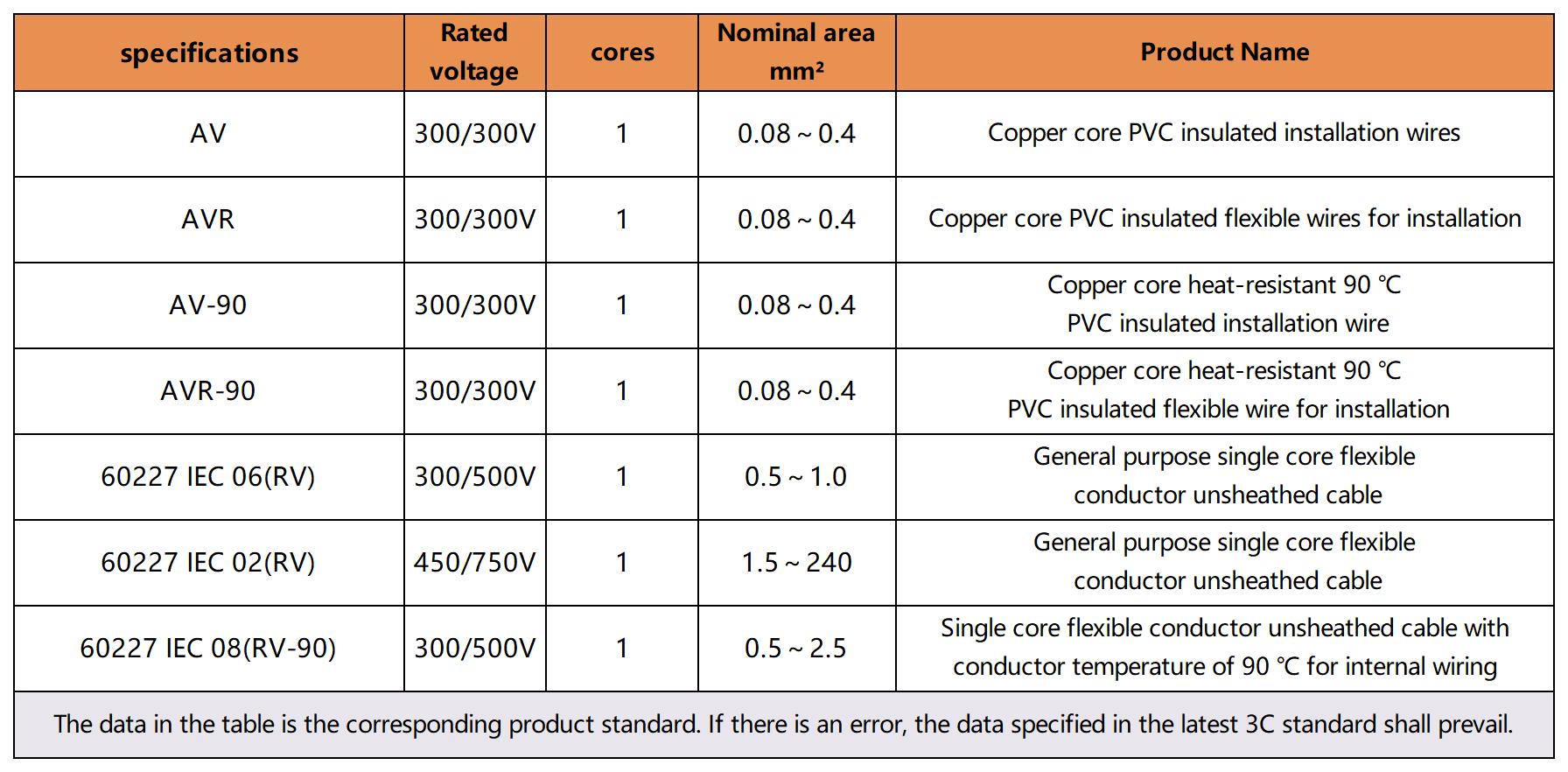

Reference mode
