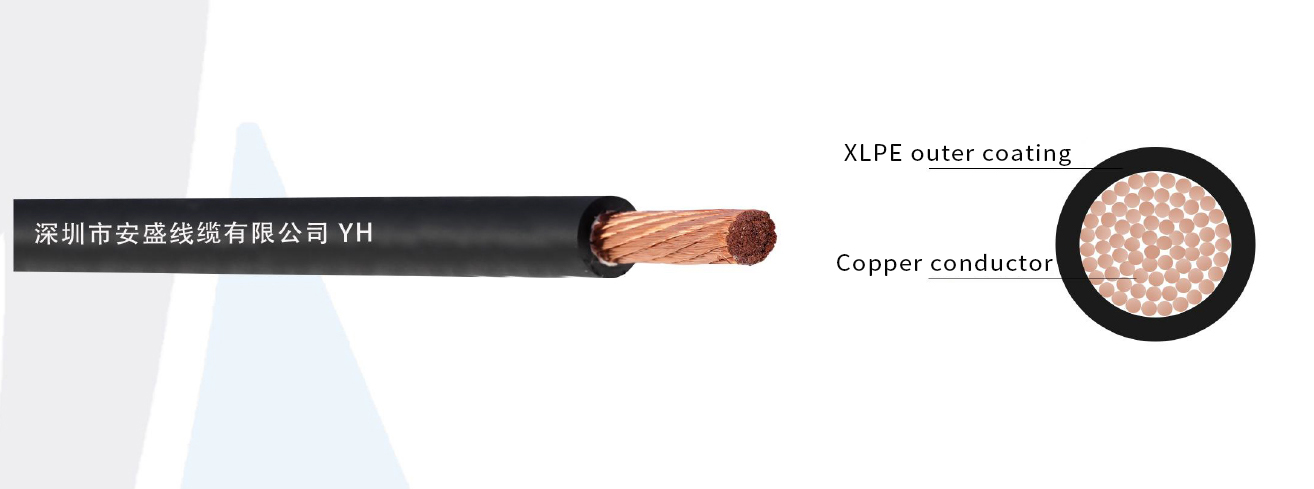

Characteristic

 ◆ core number: 1 core

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data sheet

◆ Outer coat: special mixed rubber or special rubber cover

◆ Insulation: special mixed rubber or special rubber sleeve ◆ rated voltage: 450 / 750V

◆ Color: black, red (other colors can be customized) ◆ Bending radius:> 10D

◆ Operating temperature: -40~ + 65℃

◆ Reference standard: GB5013-97; JB8735-98; JB1601-1993; 6 / 3210HL10-2002 ◆ Product characteristics: acid and alkali resistance, low temperature resistance, wear resistance, wear resistance, radiation resistance, tear resistance, high elasticity, and other characteristics. ◆ Application: Extension of electric welding machine

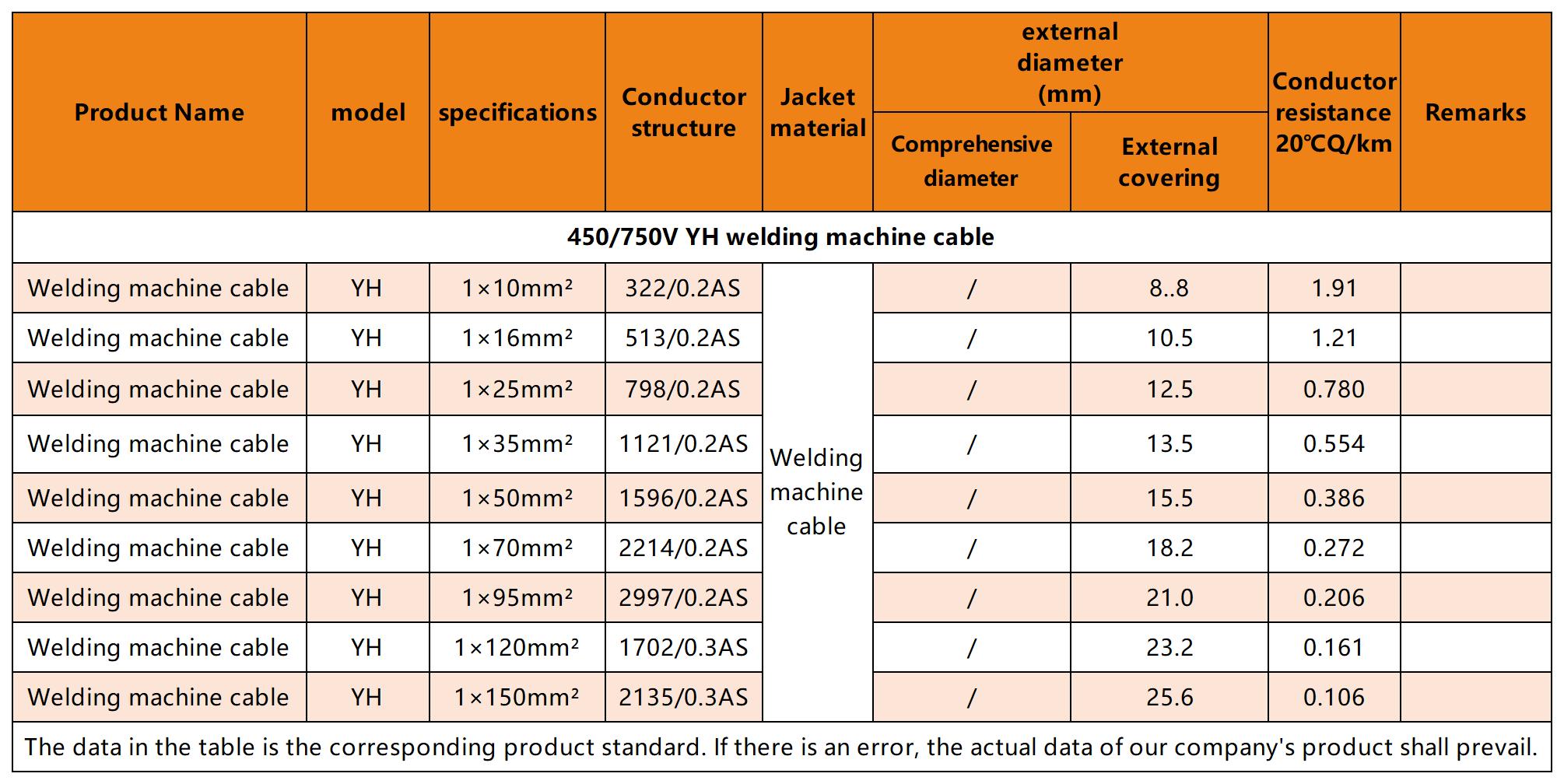

Technical parameters (for reference only) Construction
