Characteristic

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data sheet

◆ Core number: 1~10 cores

◆ Outer coat: special mixed rubber or special rubber cover

◆ Insulation: special mixed rubber or special rubber cover ◆ Color: black (other colors can be customized)

◆ Rated voltage: 300 / 300V; 300 / 500V ◆ Operating temperature: -40~ + 65℃◆ bending radius:> 10D

◆ Reference standard: GB5013-97; JB8735-98; JB1601-1993; 6 / 3210HL10-2002 ◆ Product characteristics: acid and alkali resistance, low temperature resistance, wear resistance, radiation resistance, tear resistance, high elasticity, etc. ◆ Application: radio device line

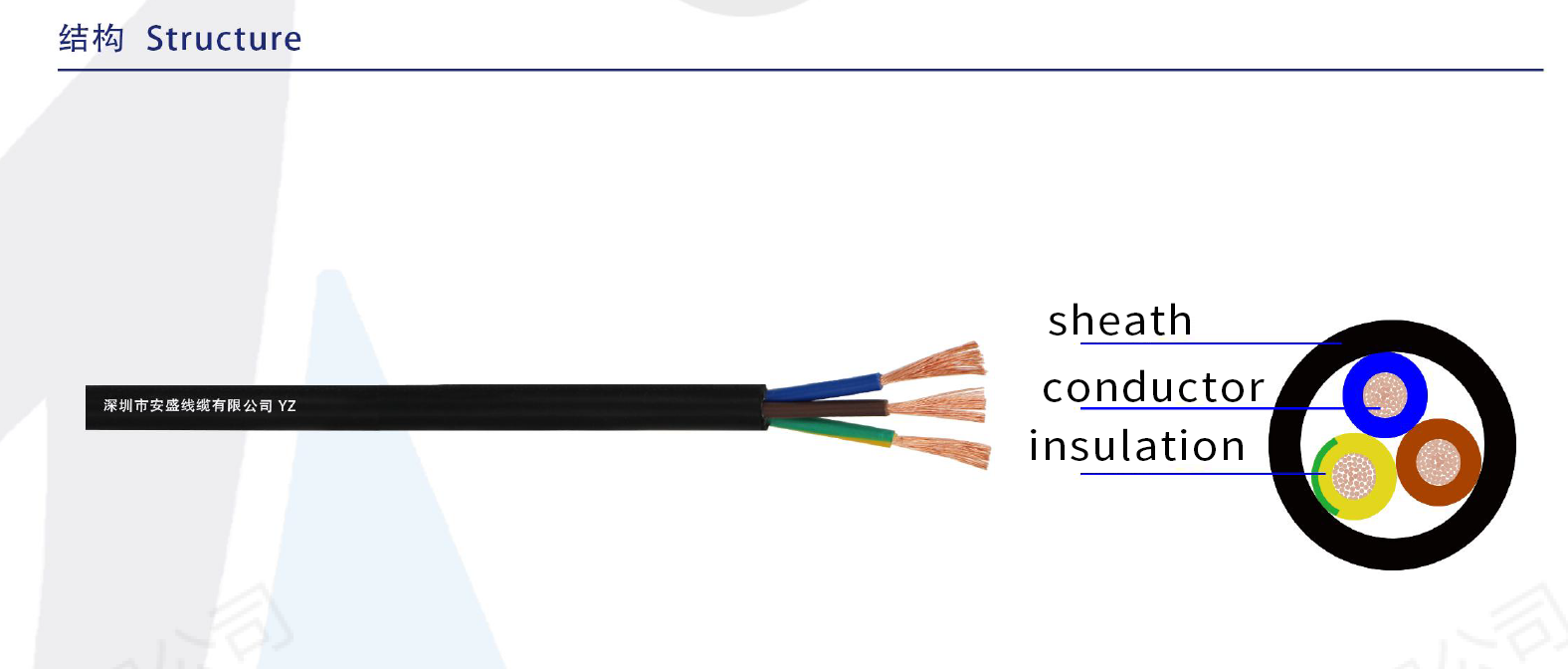

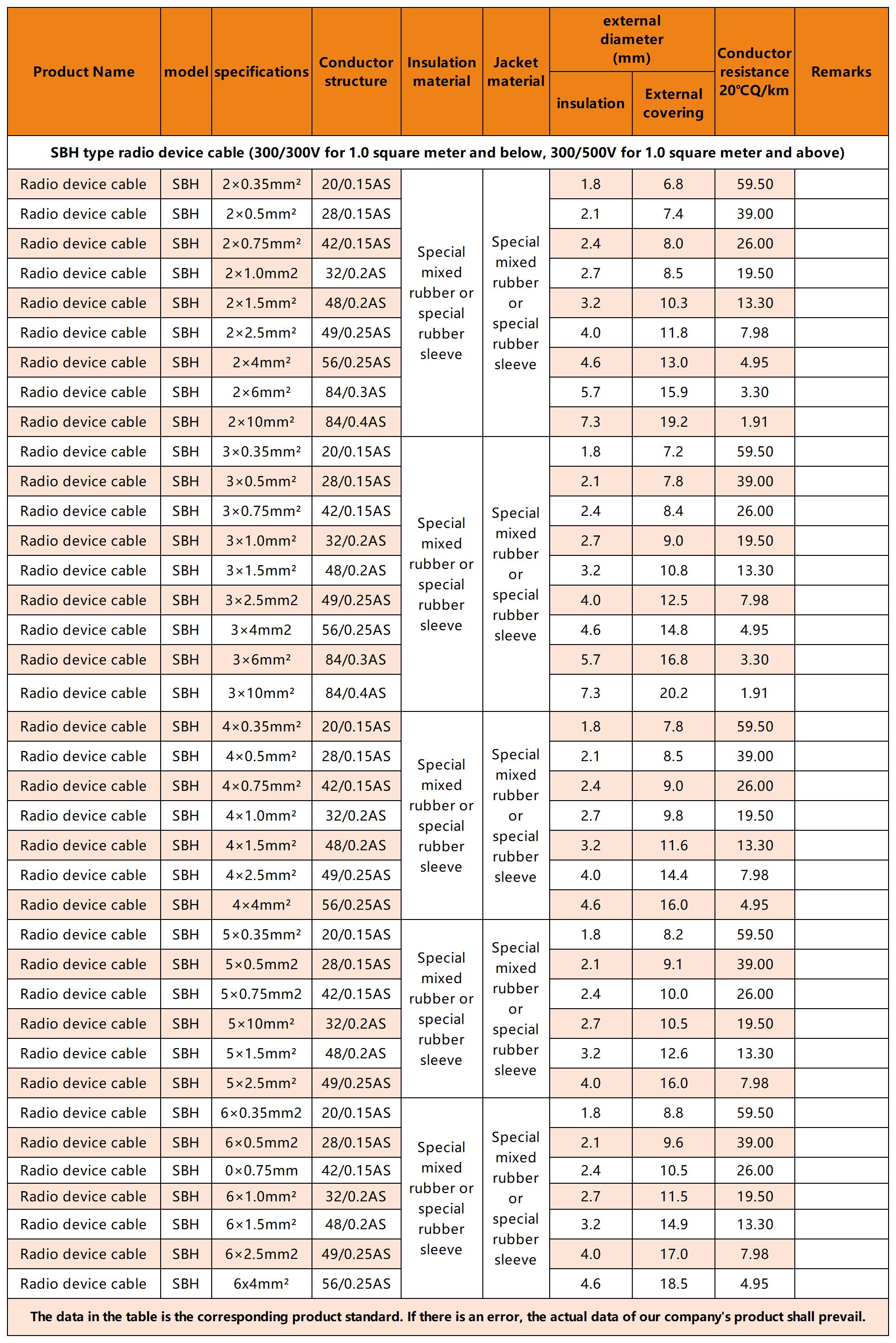

Technical parameters (for reference only) Construction
