Characteristic

◆ core number: 1~5 core

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data sheet

◆ External quilt: special mixed rubber or special rubber cover ◆ insulation: special mixed rubber or special rubber cover ◆ rated voltage: 300 / 500V

◆ Color: black (other colors can be customized) ◆ Bending radius:> 10D

◆ Operating temperature: -40~ + 65℃

◆ Reference standard: GB5013-97; JB8735-98; JB1601-1993; 6 / 3210HL10-2002 ◆ Product characteristics: acid and alkali resistance, low temperature resistance, wear resistance, radiation resistance, tear resistance, high elasticity, high water resistance and other characteristics ◆ Application: AC voltage 500V and below the submersible motor power transmission used

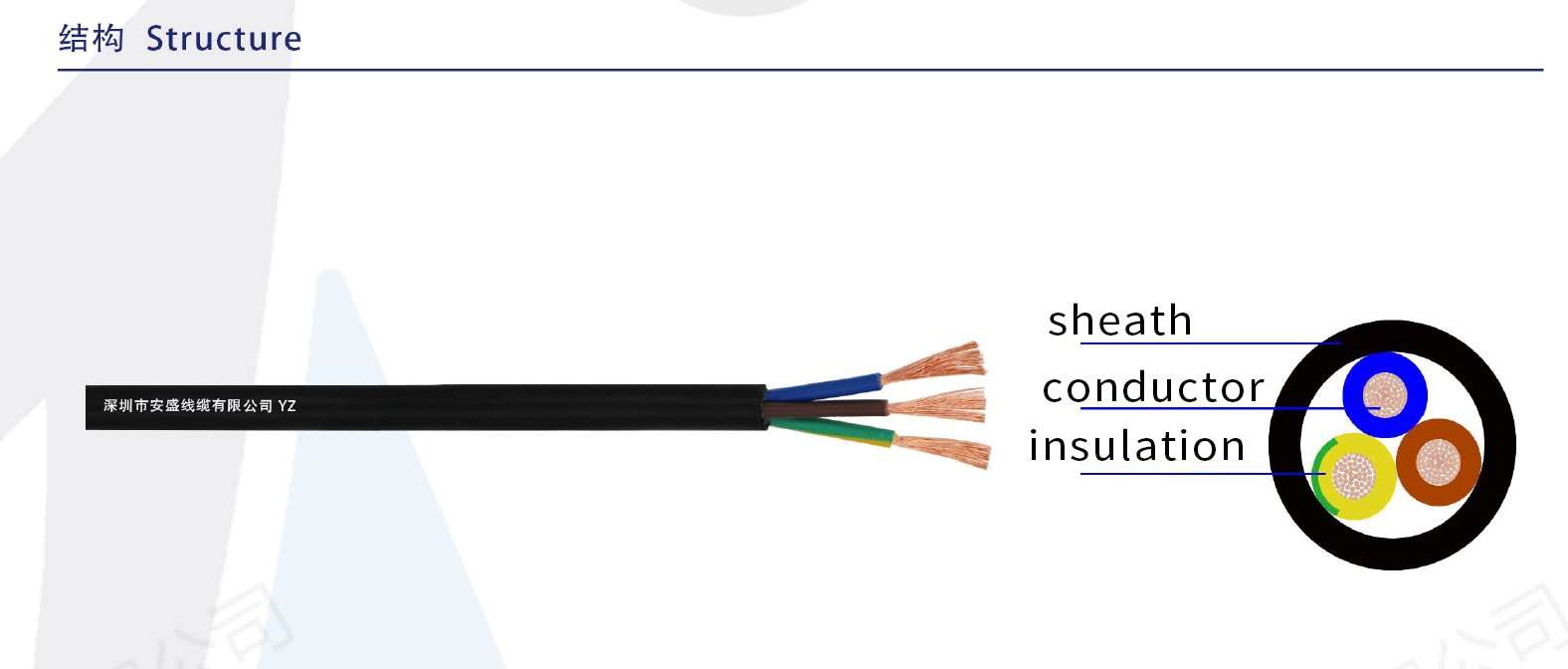

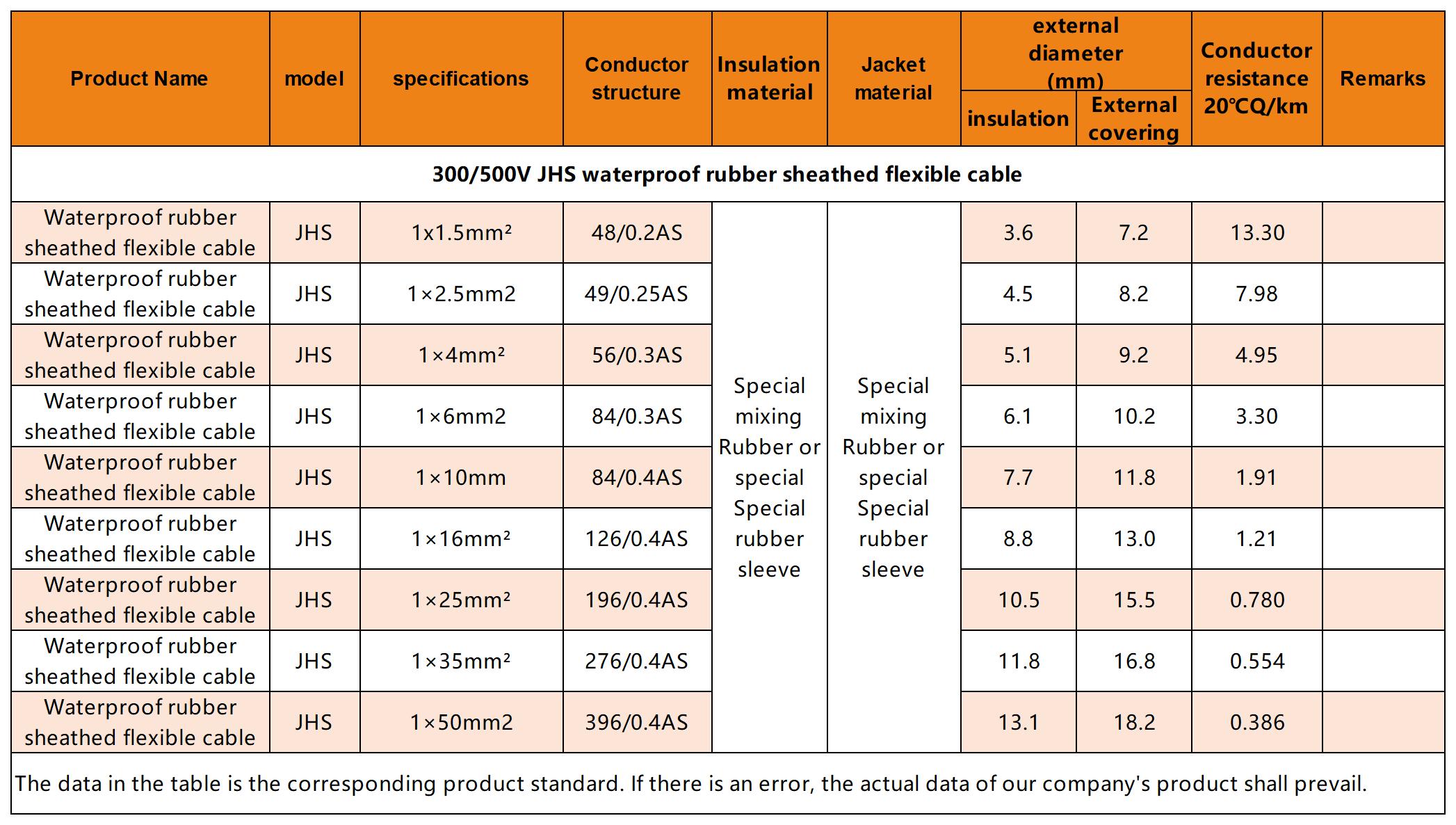

Technical parameters (for reference only) Construction
