Characteristic

◆ core number: 2~5 cores

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data table

◆ External quilt: special mixed rubber or special rubber cover ◆ Insulation: special mixed rubber or special rubber cover ◆ Color: black (customized for other colors) ◆ Rated voltage: 300 / 500V ◆ Bending radius:> 10D

◆ Operating temperature: -40~ + 65℃

◆ Reference standard: GB5013-97; JB8735-98; JB1601-1993; 6 / 3210HL10-2002 ◆ Product characteristics: acid and alkali resistance, low temperature resistance, wear resistance, radiation resistance, tear resistance, high elasticity and other characteristics ◆ Application: daily appliances, small electric equipment, agricultural electrification medium

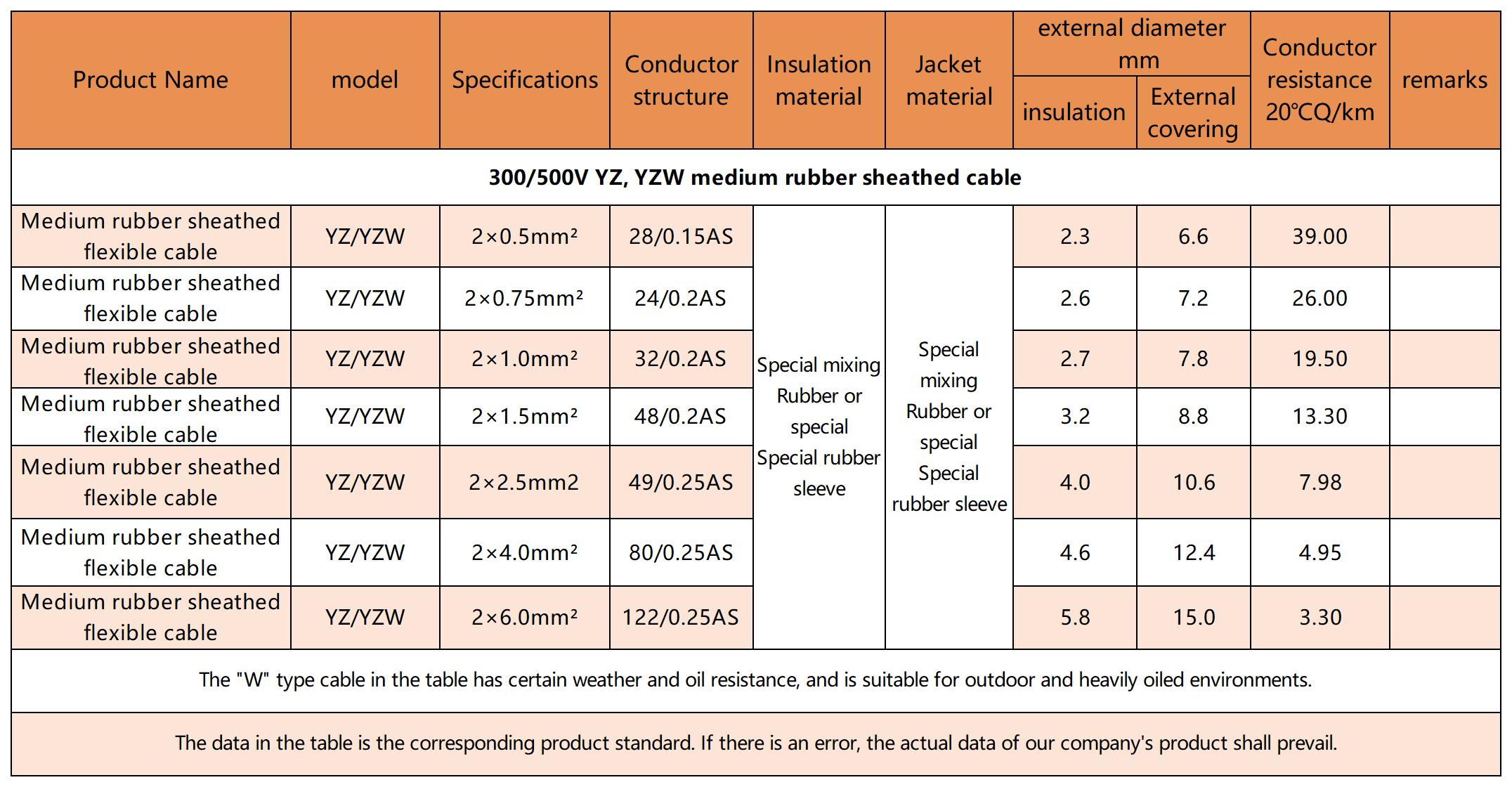

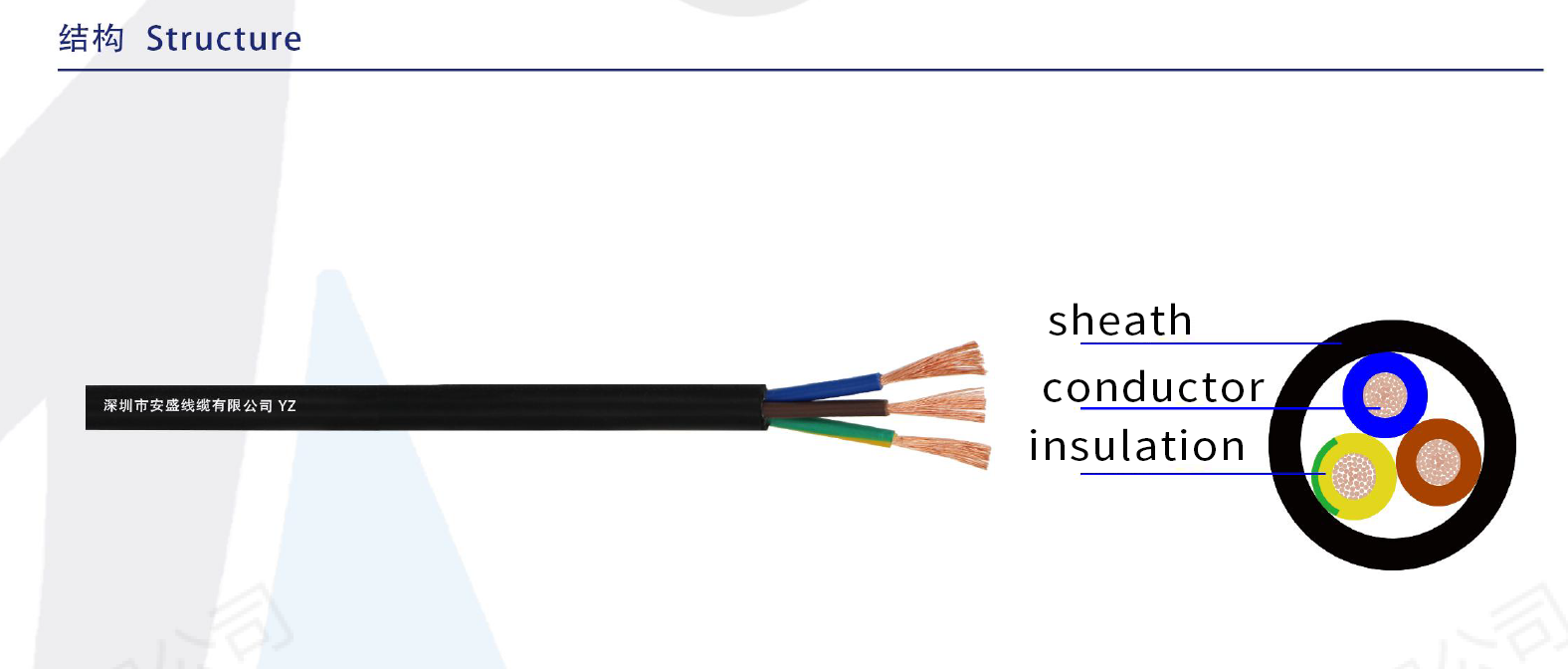

Technical parameters (for reference only) Construction
