Characteristic

 ◆ core number: 2~3 cores

◆ Conductor: multiple 4N grade anaerobic copper stranded, structure refer to data table ◆ Insulation: special mixed PVC

◆ External: special mixed rubber or special rubber cover ◆ Color: black (other colors) ◆ Rated voltage: 300 / 300V ◆ Bending radius:> 10D

◆ Operating temperature: -40~ + 65℃

◆ Reference standard: GB5013-97; JB8735-98; JB1601-1993; 6 / 3210HL10-2002 ◆ Product characteristics: acid and alkali resistance, low temperature resistance, wear resistance, radiation resistance, tear resistance, high elasticity and other characteristics ◆ Application: daily electrical appliances, small electric equipment, etc

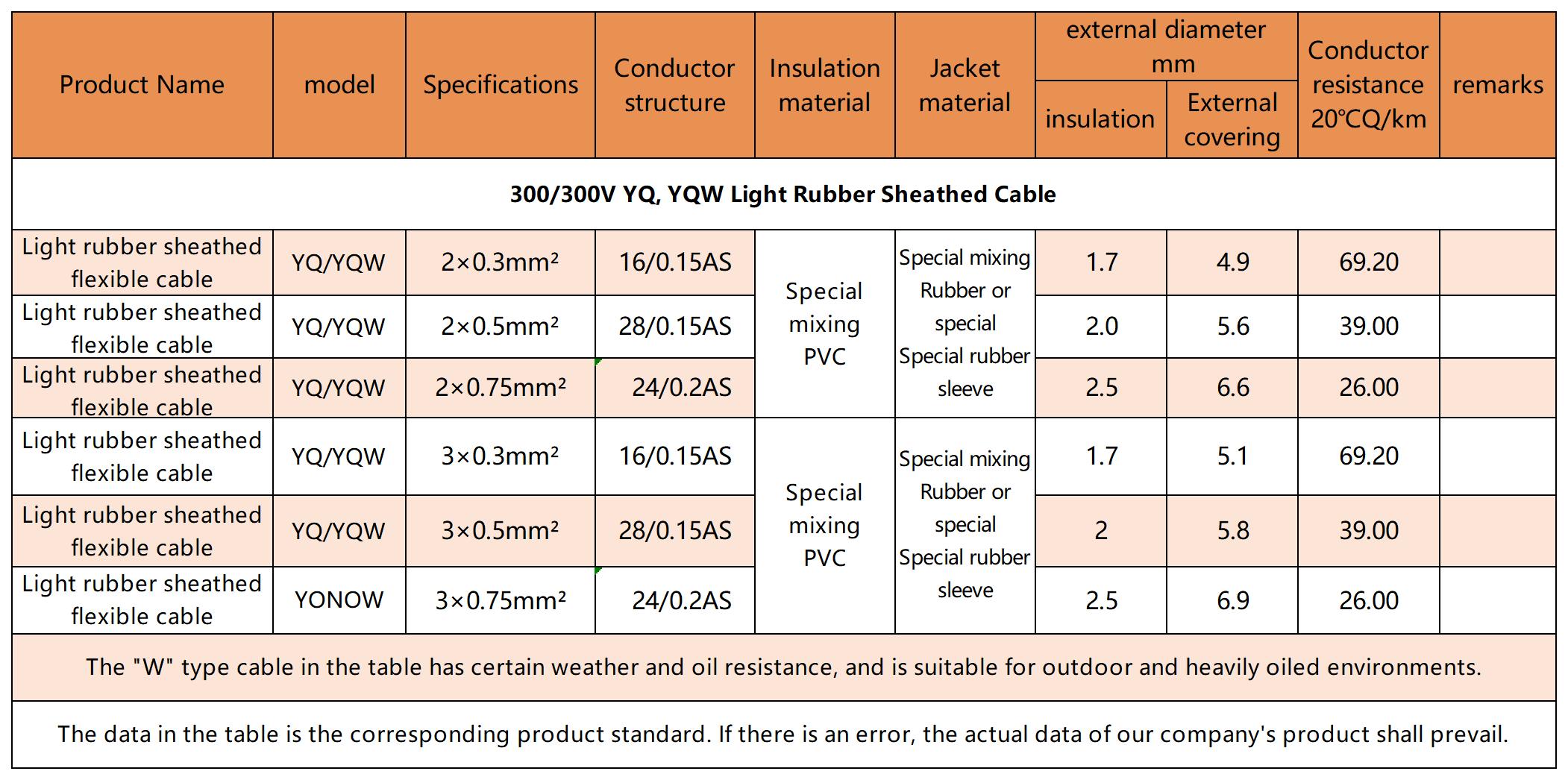

Technical parameters (for reference only) Construction
