Characteristic

◆ Anopposite sex: urine with multiple 0.08mm 4N anaerobic copper absorption into ◆ edge: mixed TPEE material (monochrome code S song color) ◆ core number: 2~36

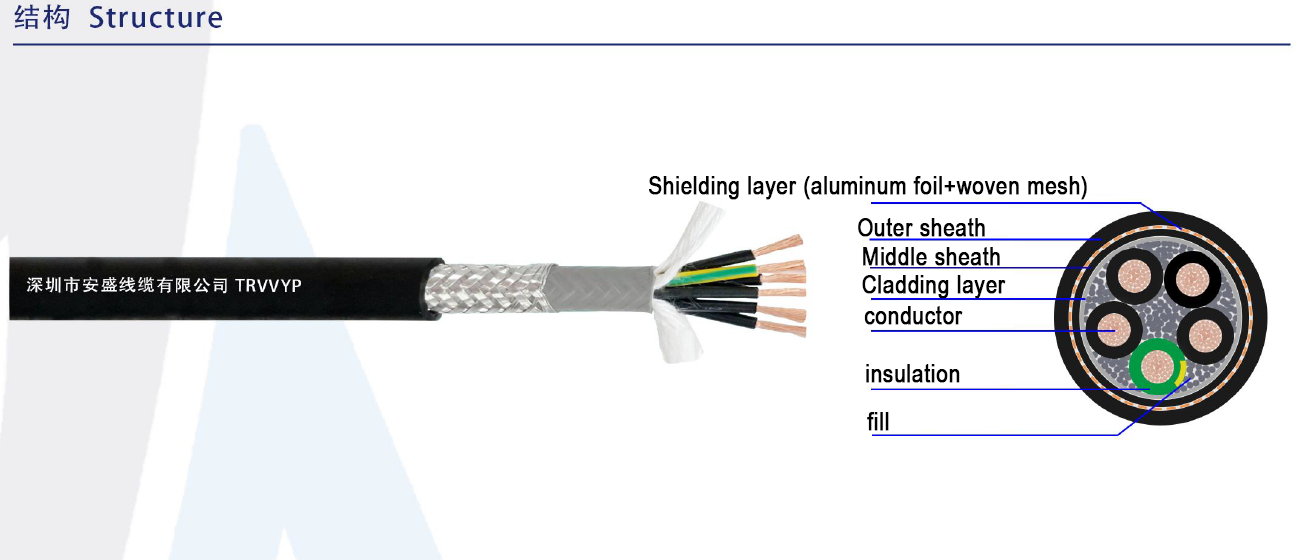

◆ Shield: mink foil + tin copper woven ◆ by color: gray & black

◆ Proper square number: 0.3~2.5mm²◆ external color: black (standing color)

Grade ◆ fixed voltage: 300 / 300V8300 / 500V

◆ Long-term light-permissive working temperature: fixed installation (-50~ + 125℃); mobile installation (-35~ + 125℃)

◆ Minimum bending radius: fixed variable, bending single diameter is 6.5 D; mobile installation, travel of 10 m, youth medium light is 7.50; travel of 10 m, bending radius is 10 D

◆ Product characteristics: environmental protection, halogen free, cold resistance, flow resistance, hemp oil resistance, wear resistance, bending resistance, elastic suppression, anti-interference (shielding) waiting point ◆ suitable for air frequency, mechanical arm, mechanical track, elevator, circulation cycle equipment and devices.

Testing

Voltage test: 2000V / 5min (10A) (AC) & 1500V / 5min (10A) (AC)

The test: movement speed to bend the conditions in the drag test, fixed in the standard way, bending radius f=6D, s=600mm, pass =90 circle / min; movement speed: 3m / k, sliding speed 2 m/s, more than 30 million times. Insulation sheath performance test: according to the corresponding standard performance of the material.
