Characteristic

◆ Total margin: special mixed PVC material (monochromatic disease code & color)

◆ Conductor: using multi- ★ 0.08mm 4N grade anaerobic copper stranded surface

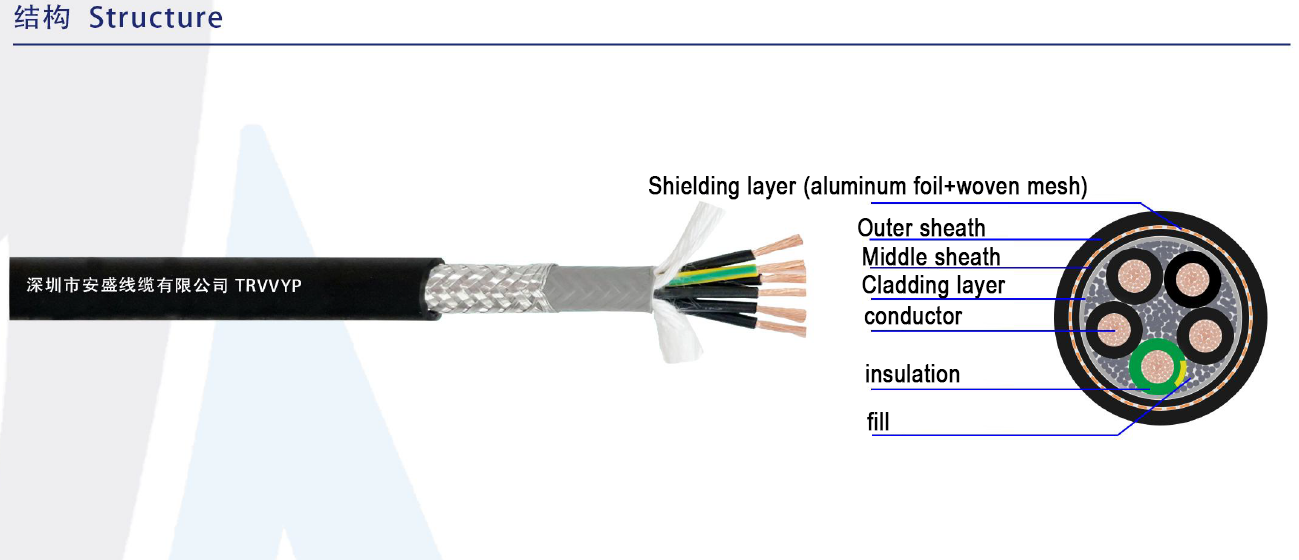

◆ Shielding: mink foil + glass bronze medal paper ◆ Core number: 2~36 cores

◆ The color: gray black

◆ Proper square number: 0.5 mmm ²

◆ External color: black (standing color)

◆ Set voltage: 300 / 300V & 300 / 500V

◆ Long-term permissible working temperature: fixed installation (-30~ + 105℃); mobile installation (-20~ + 105℃)

◆ Small bending radius: fixed experiment, the bending radius is 6 D; moving to change, when travel of 10 meters, the single diameter is 7.5 D; when travel of 10 meters, the bending radius is 10 D

◆ Product characteristics: environmental protection, oil resistance, corrosion resistance, wear resistance, bending resistance, anti-interference (shielding type) and other characteristics ◆ suitable for air frequency device, mechanical arm, mechanical track, lift, circulating power pumping equipment and devices.

Testing

Telephone test: 2000V / 5min (10A) (AC) & 1500V / 5min (10A) CAC)

Movement pass test: fixed in standard mode, with curvature radius f=6D, s=600mm, pass =90 circle / min; moving pass: limit pass 3 m/s, stealth penetration 2m / k, more than 15 million times. Maintenance set performance test: according to the corresponding standard performance of the material.
