Application

Network data transmission, surveillance video, computer room construction and other high-bandwidth system signals, including IEEE802.3AB 10G (ten gigabit Ethernet), TAICODBase-TX, 622 Mbit/s ATM, and any application system for ten gigabit cabling.

Characteristic

Seven types of network cable (CAT 7) is the latest kind of twisted pair in ISO7 class / class standard, which is mainly to adapt to the application and development of ten gigabit Ethernet technology. The seven types of lines are no longer an unshielded twisted pair, but a shielded double pair, so it can provide a comprehensive attenuation of at least 500MH b ratio and the overall bandwidth of 600 MHZ, with a transmission rate of up to 10 Gbps.

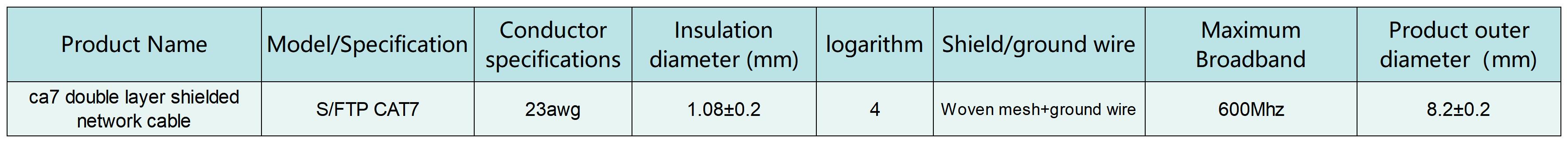

Description

◆ The conductor is insulated by a single bare copper wire

◆ polyethylene

◆ Shielding type for each pair of individual aluminum foil shield

◆ optional tear rope woven mesh shield, ground wire

◆ Environmental protection polyvinyl chloride sheath (flame retardant, LZSH, outdoor waterproof materials

◆ working temperature: -40~60℃
