Characteristic

◆ Shielding: aluminum foil + tin-plated copper weaving

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data table

◆ Stracking: no ◆ core number: 1 core

◆ Insulation: 125℃ or 150℃ XLPE

◆ External quilt: 125℃ or 150℃ XLPE ◆ Color: orange (other colors can be customized) ◆ Rated voltage: 1500V ◆ Bending radius: 5 D

◆ Operating temperature: -40~ + 125℃ or-40~ + 150℃

◆ Flame-retardant performance: VW-1

◆ Insulation material shall meet the requirements of UL 94-V0;

◆ Reference standards: ISO6722, UL 758, I5019642, LV216, QC / T1037

◆ Product features: halogen free, environmental protection, radiation prevention, oil resistance, corrosion resistance, wear resistance, cold resistance, high temperature resistance, tensile resistance and other characteristics ◆ Application: suitable for telecommunications equipment, electrical equipment, power lighting, new energy vehicle internal line

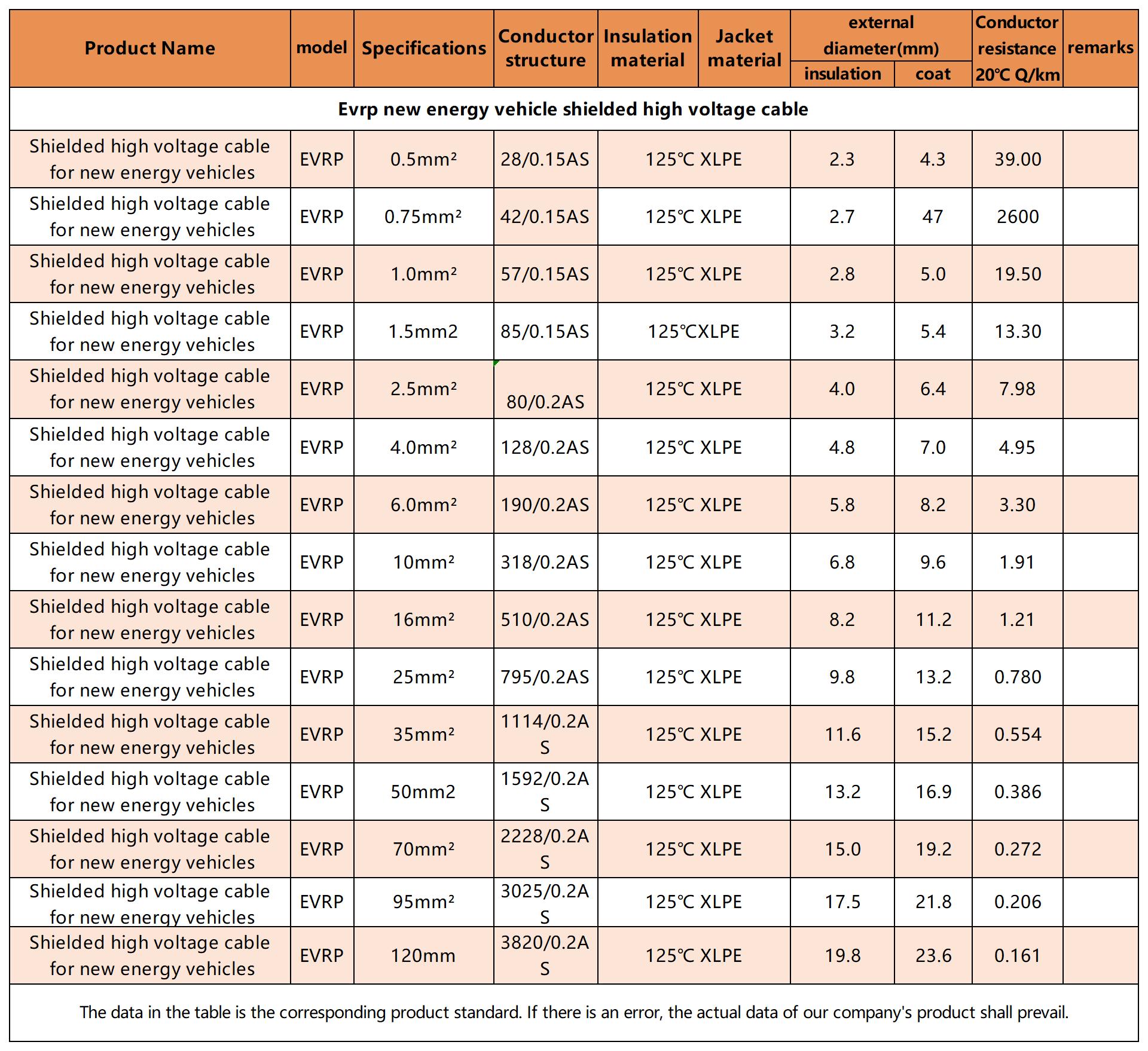

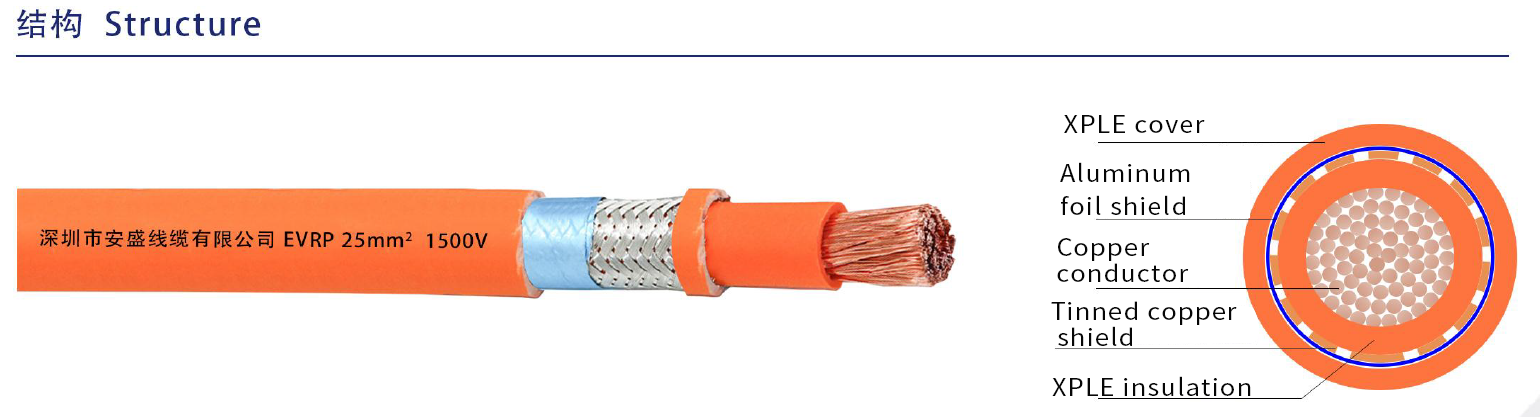

Technical parameters (for reference only) Construction
