Characteristic

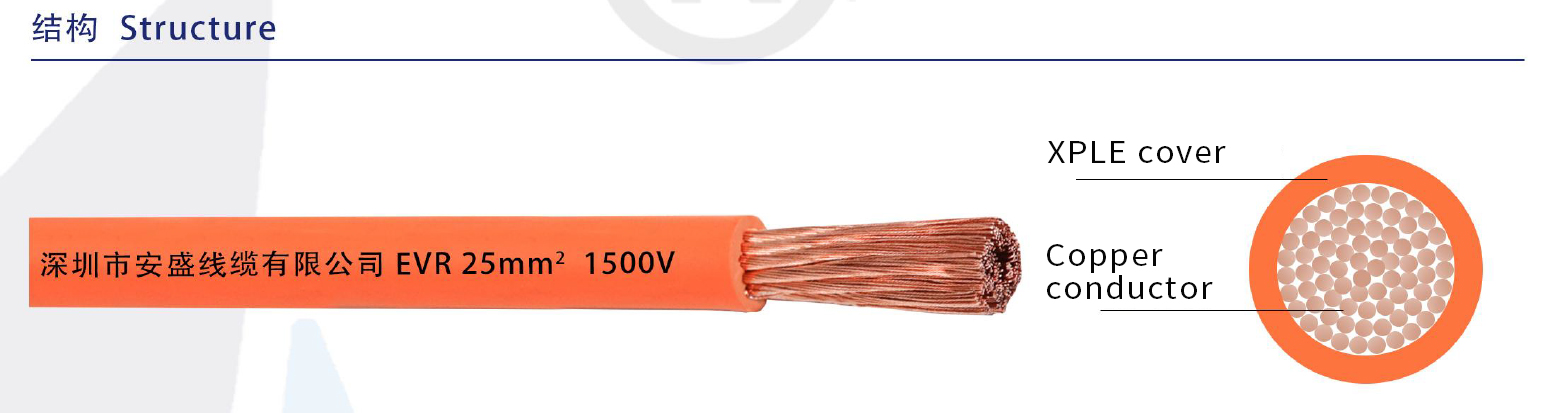

◆ Conductor: multiple 4N grade anaerobic copper stranded, structure refer to data table ◆ Shield: none

◆ winch: No

◆ Core number: 1 core ◆ outside the quilt: no

◆ Insulation: 125℃ or 150℃ XLPE ◆ Color: orange, black, red ◆ rated voltage: 1500V

◆ Bending radius: 5 D

◆ Operating temperature: -40~ + 125℃ or-40~ + 150℃

◆ Flame-retardant performance: VW-1

◆ Insulation material shall meet the requirements of UL 94-V0;

◆ Reference standards: ISO6722, UL 758, I5019642, LV216, QC / T1037

◆ Product features: halogen free, environmental protection, radiation prevention, oil resistance, corrosion resistance, wear resistance, cold resistance, high temperature resistance, tensile resistance and other characteristics ◆ Application: suitable for telecommunications equipment, electrical devices, new energy vehicle internal lines, charging pile and other fields

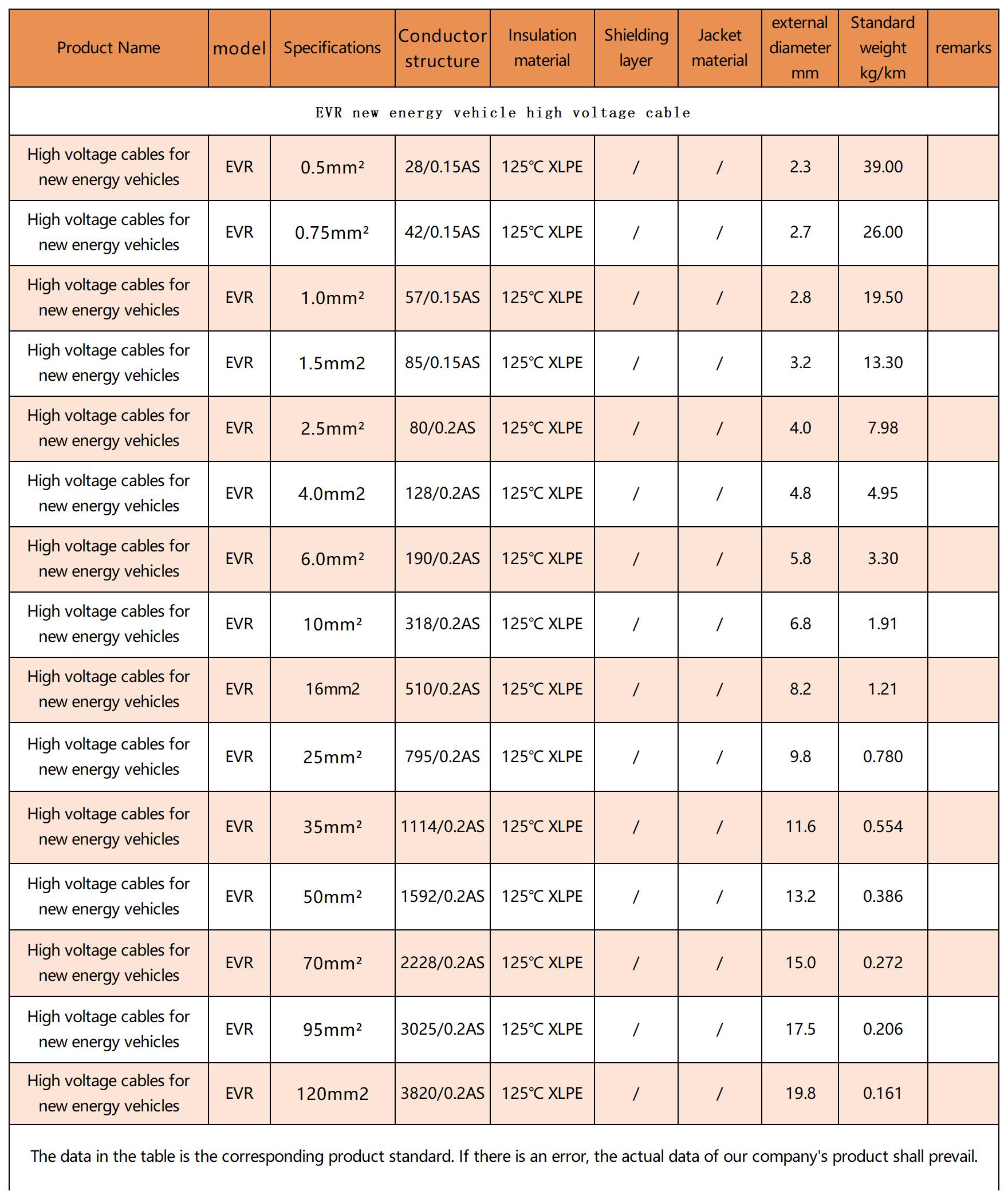

Technical parameters (for reference only) Construction
