Characteristic

◆ Core number: 2~7 cores

◆ Conductor: using multiple 4N grade anaerobic copper stranded to form ◆ insulation: PVC

◆ Color: color ◆ outside the quilt: PVC black

◆ Shielding: tin-plated copper shield ◆ Flame retardant: VW-1

◆ Rated voltage: 300 / 500V 450 / 750V ◆ Operating temperature: -20~ + 70℃

◆ Applicable: widely used in automation equipment, electrical equipment, instruments, power supply and other systems.

◆ Product characteristics: good anti-interference performance (shielding type), superior conductive performance, environmental protection, flame retardant, soft and easy to use by assembly.◆ Implementation standard: EN50525-2-11, EN50265-2-1, the product meets the CE certification standards.

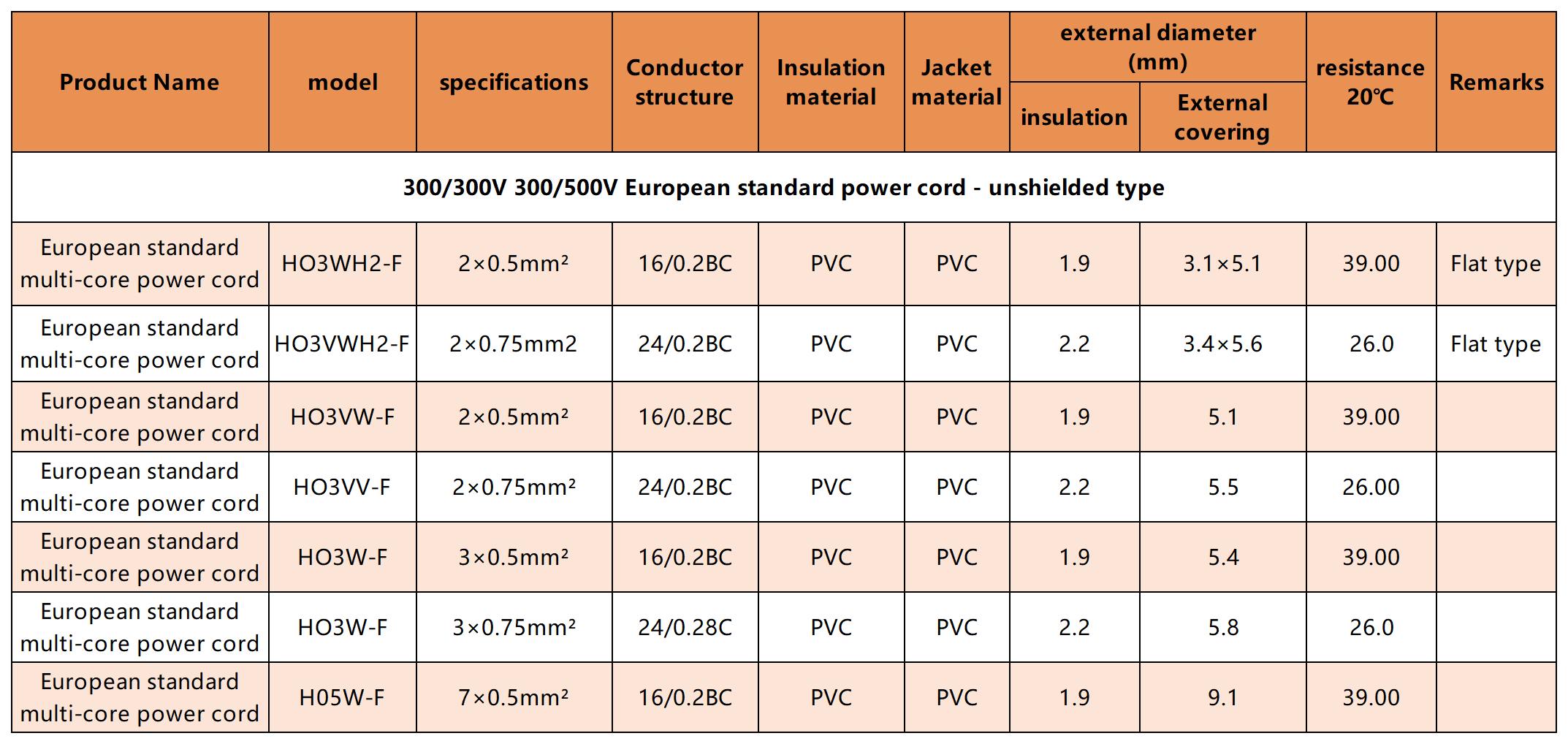

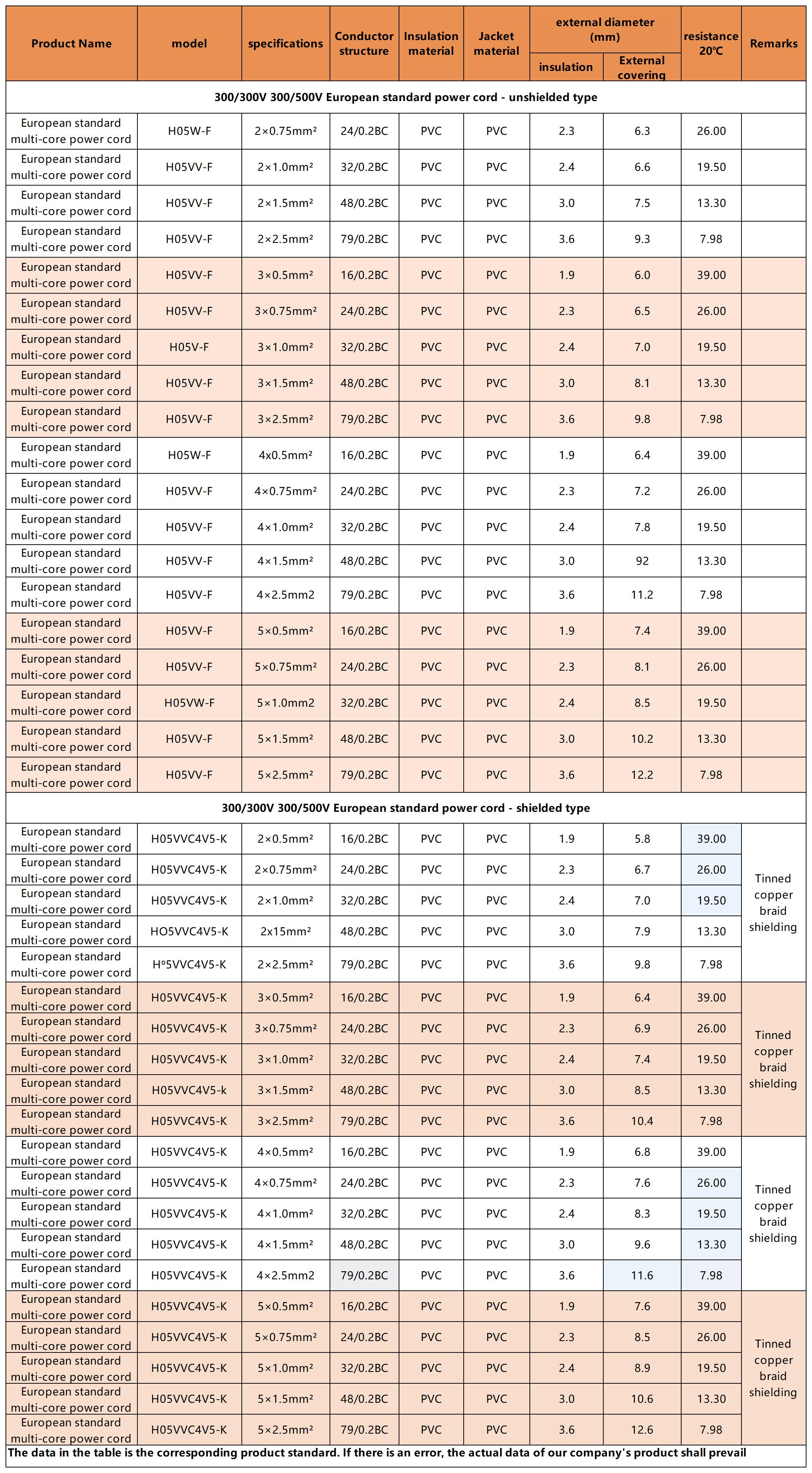

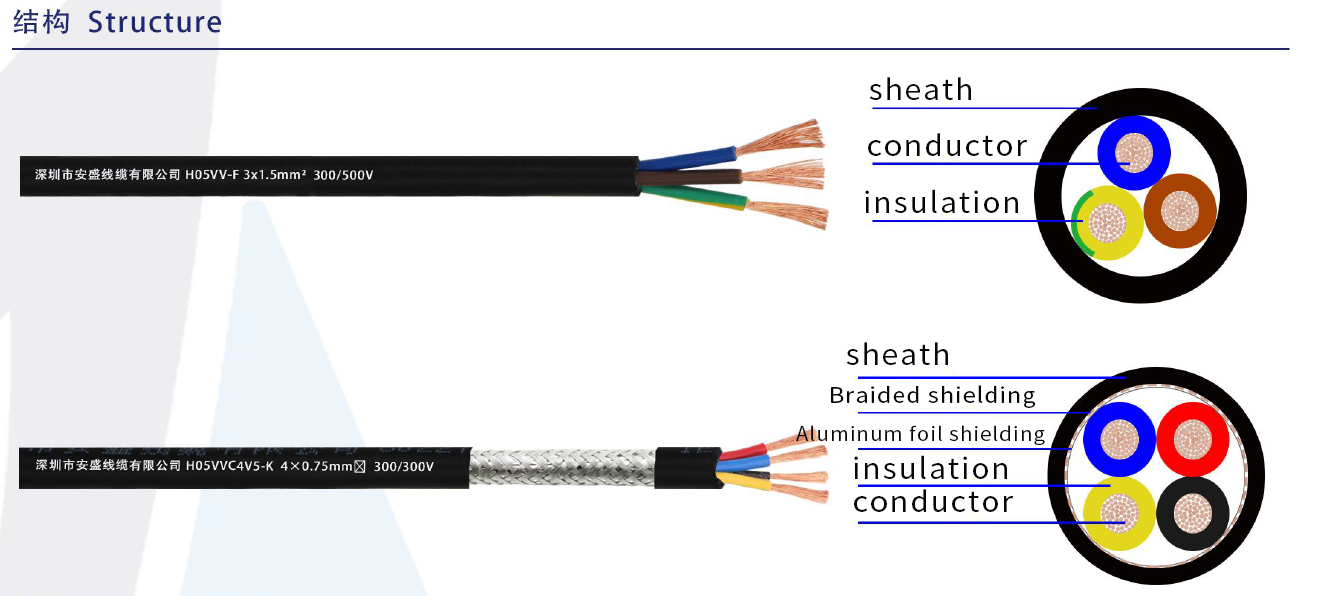

Technical parameters (for reference only) Construction
