Characteristic

 ◆ insulation: silica gel

◆ Conductor: using multiple tin-plated copper stranded into ◆ color: multi-color optional

◆ Flame-retardant performance: VW-1

◆UL3239 Series: pressure 3~20KV; temperature-60~ + 200℃; ◆UL3135 series: pressure 600V; temperature-60~ + 200℃; ◆UL3123 series: pressure 300V; temperature-60~ + 150℃; ◆UL3132 series: pressure 300V; temperature-60~ + 150℃;

◆ Applicable to: electrical products, lighting equipment, electronic equipment, lithium battery, model aircraft, robots and other products.

◆ Product characteristics: high voltage resistance, aging resistance, long service life, good softness, waterproof and pressure resistance, acid and alkali resistance and other characteristics

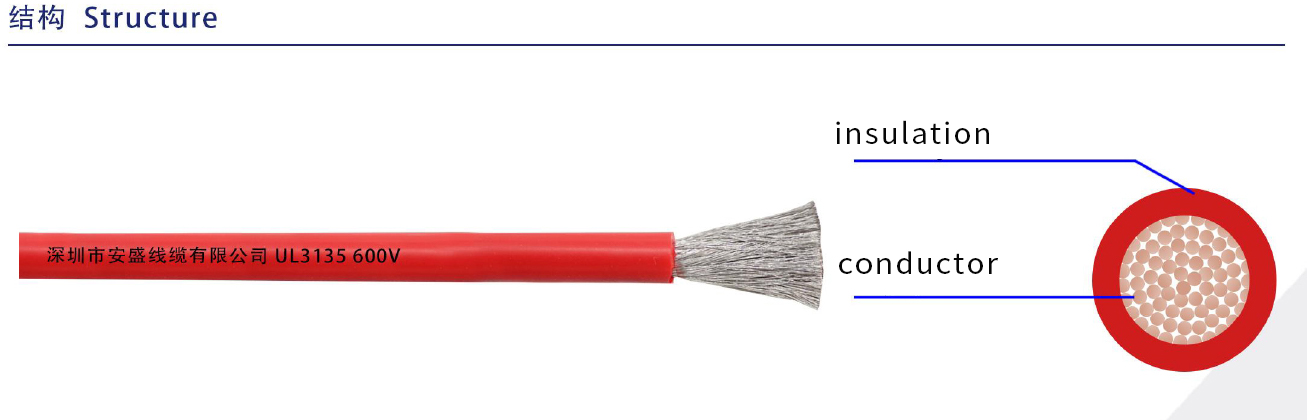

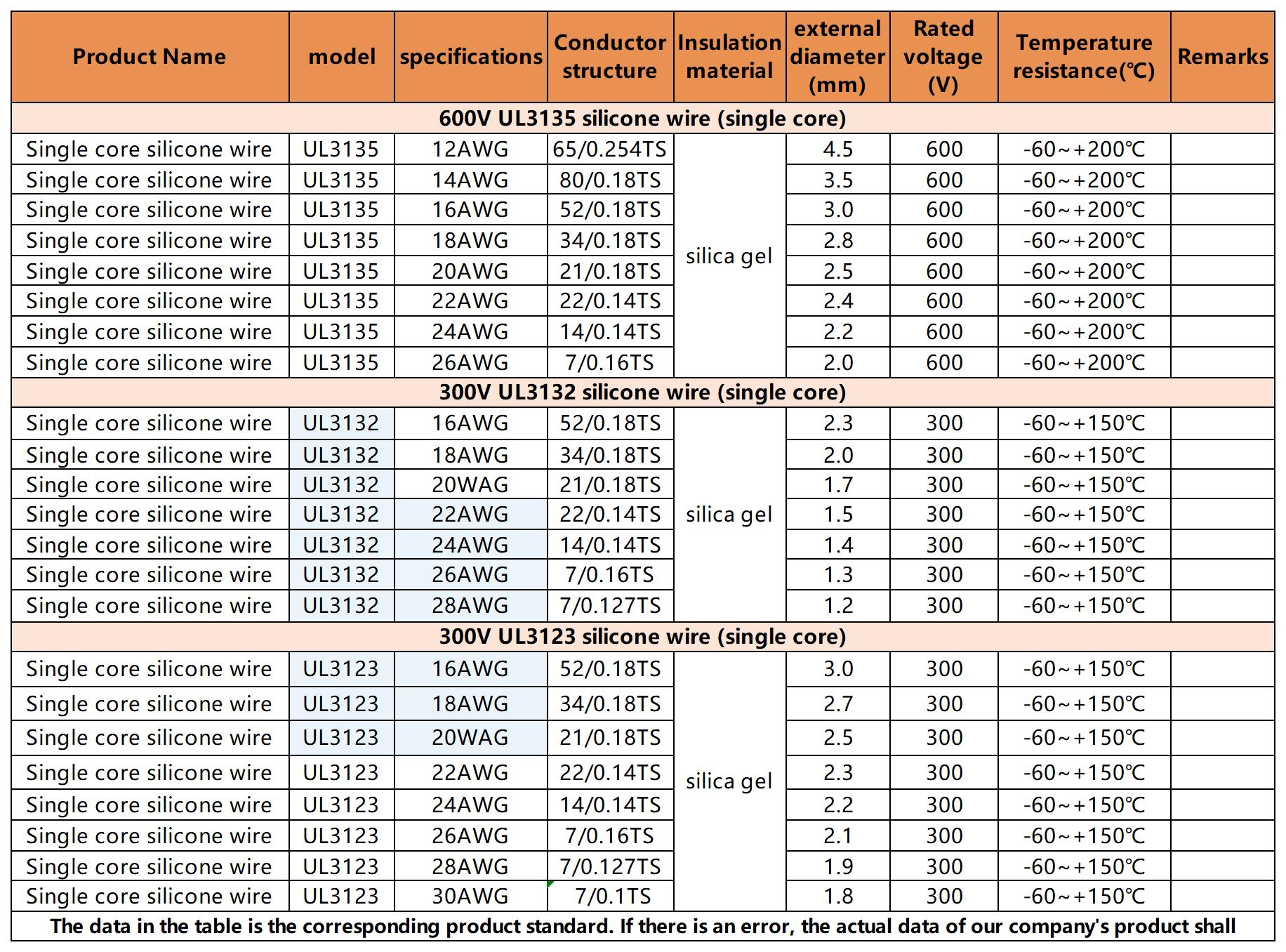

Technical parameters (for reference only) Construction
