Characteristic

Conductor square number: 1.5-35 mm ²

◆ Conductor: using multiple tin-plated soft copper wire stranded into insulation: irradiation low smoke halogen-free flame retardant XLPE ◆ Insulation color: black, gray ◆ sheath color: red, black

External quilt: Irradiated low smoke halogen-free flame retardant XLPE ◆ Operating temperature: -40~ + 125℃

◆ Rated voltage: AC0.6/1KV;DC1.0/1.8KV ◆ flame retardant performance: VW-1

◆ Bending radius: 4 D

Reference standard: 2PFG 1169; EN50618; IEC62930

◆ attestation:TUV

◆ Product features: double sheath, low smoke halogen free, environmental protection, oil resistance, corrosion resistance, wear resistance, cold resistance, high temperature resistance, disturbance UV and other features ◆ Application: solar photovoltaic field

Testing

Voltage test: 6.5KV / 5min (AC) & 15KV / 5min (DC)

Other items test: resistance test-finished spark test-insulation resistance test- -color edge long-term DC voltage resistance stability test- -appearance size test- -weather resistance / ultraviolet resistance aging test- -flame retardant performance test- -and so on.

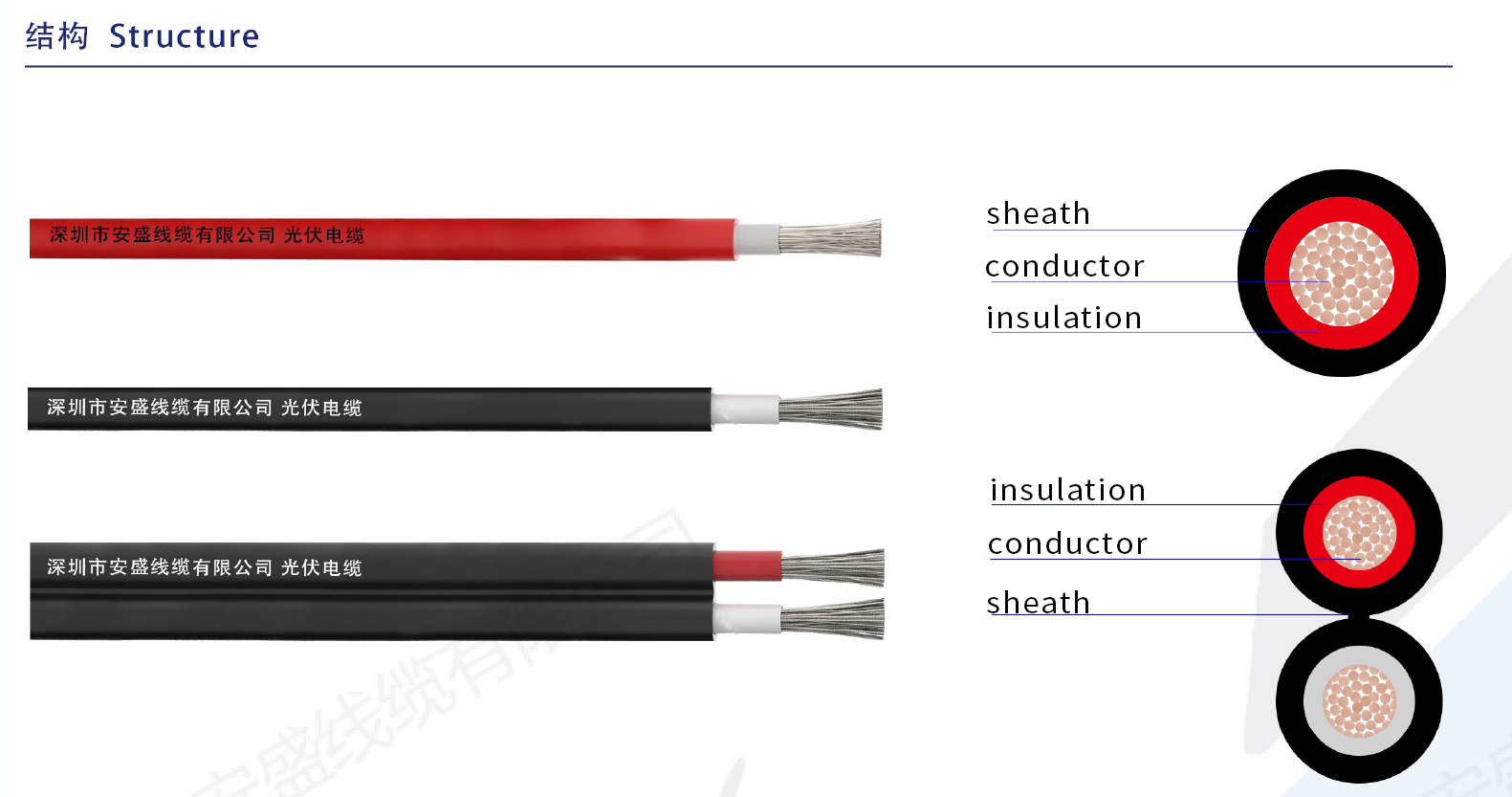

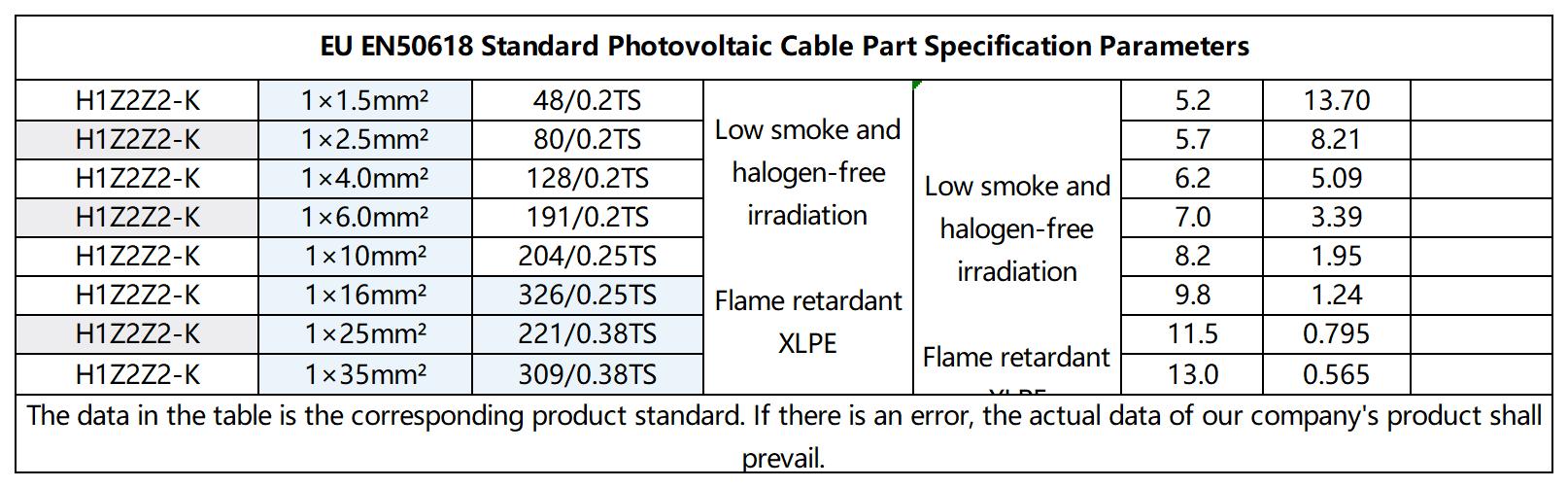

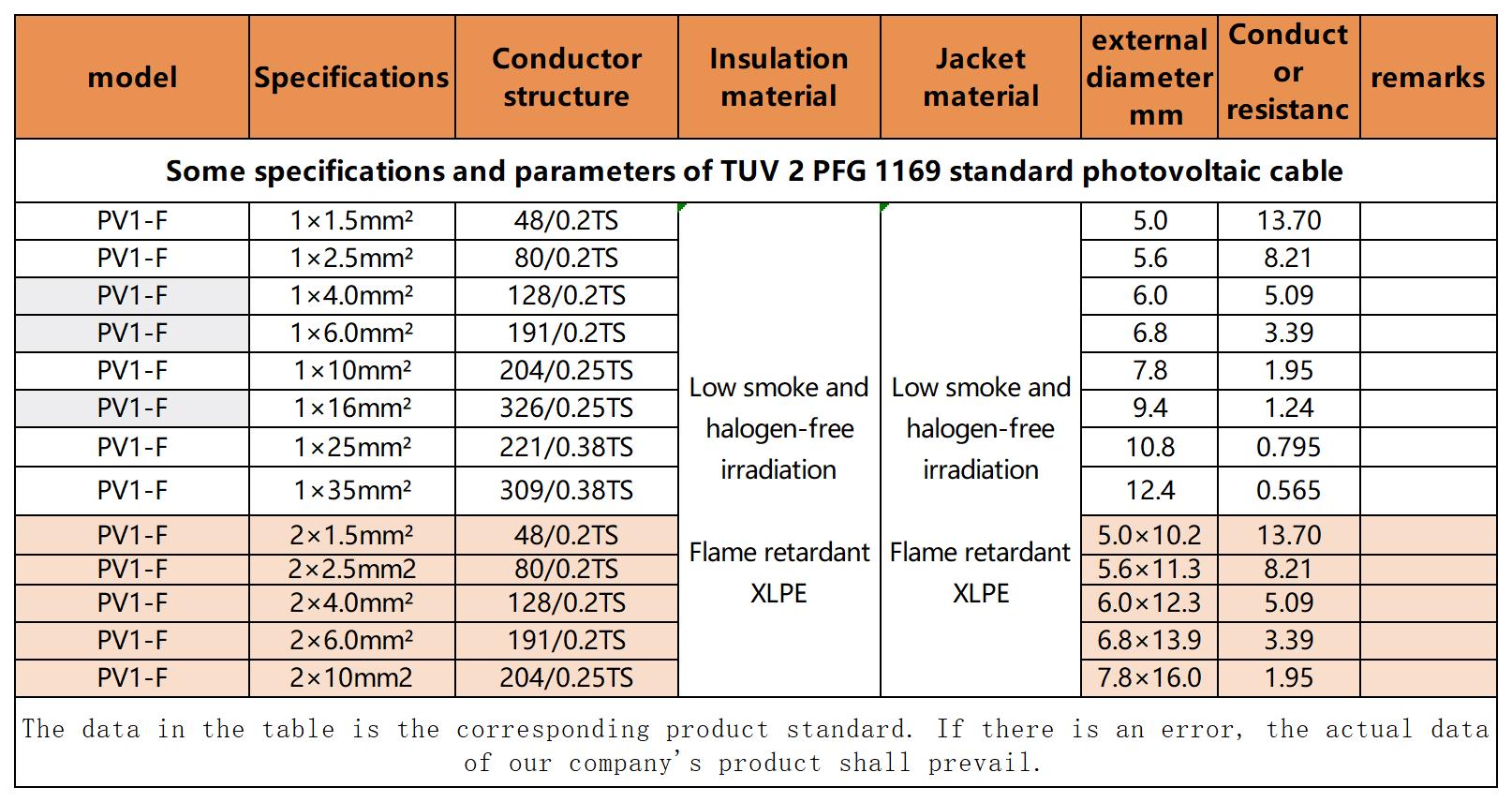

Technical parameters (for reference only) Construction
