Characteristic

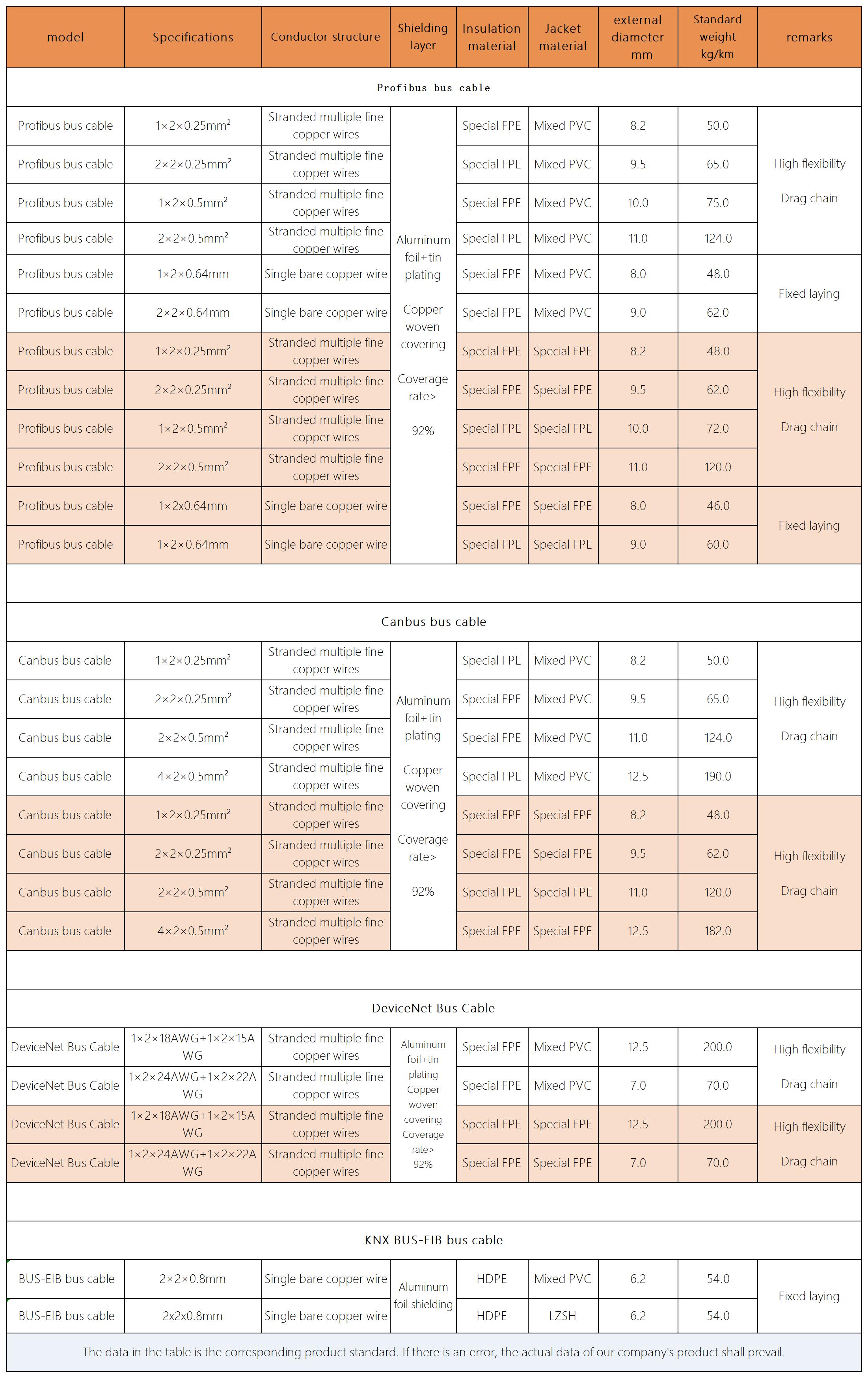

Conductor: Grade 4N grade anaerobic copper, structure refer to the data sheet

Shielding: aluminum foil + woven net ◆ core number: 2~8 core

◆ Stringing: 2 core twisted + twisted results ◆ external quilt: special mixed PVC material or PUR ◆ insulation: foaming PE (refer to data sheet) ◆ Operating voltage: 300V (EIB line 250V)

◆ Color: green, purple, gray, blue, black

◆ Long-term permissible working temperature: fixed installation (-30~ + 105℃) mobile installation (-20~ + 105℃) (mixed PVC quilt) ◆ Long-term permissible working temperature: fixed installation (-50~ + 125℃) mobile installation (-35~ + 125℃) (special PUR external quilt)

◆ Minimum bending radius; fixed installation, bending radius of 6 D; moving installation, travel <10 m, the bending radius is 8 D; travel 10 m, the bending radius is 15 D

Product characteristics: environmental protection, oil resistance, corrosion resistance, wear resistance, bending resistance, cold resistance, high elasticity, tensile resistance and other characteristics of the application: suitable for the system of the bus system, can be fixed laying or mobile assembly

Testing

Voltage test: 1500V (EIB bus 2000V)

Flexible test: moving speed to bend various conditions in the tow chain, fixed in the standard way, bending radius r=6D, s=600mm, speed =90 times / min; moving speed: overhead speed 3 m/s, sliding speed 2 m/s, more than 10 million times. Insulation sheath performance test: according to the corresponding standard performance of the material.
