Characteristic

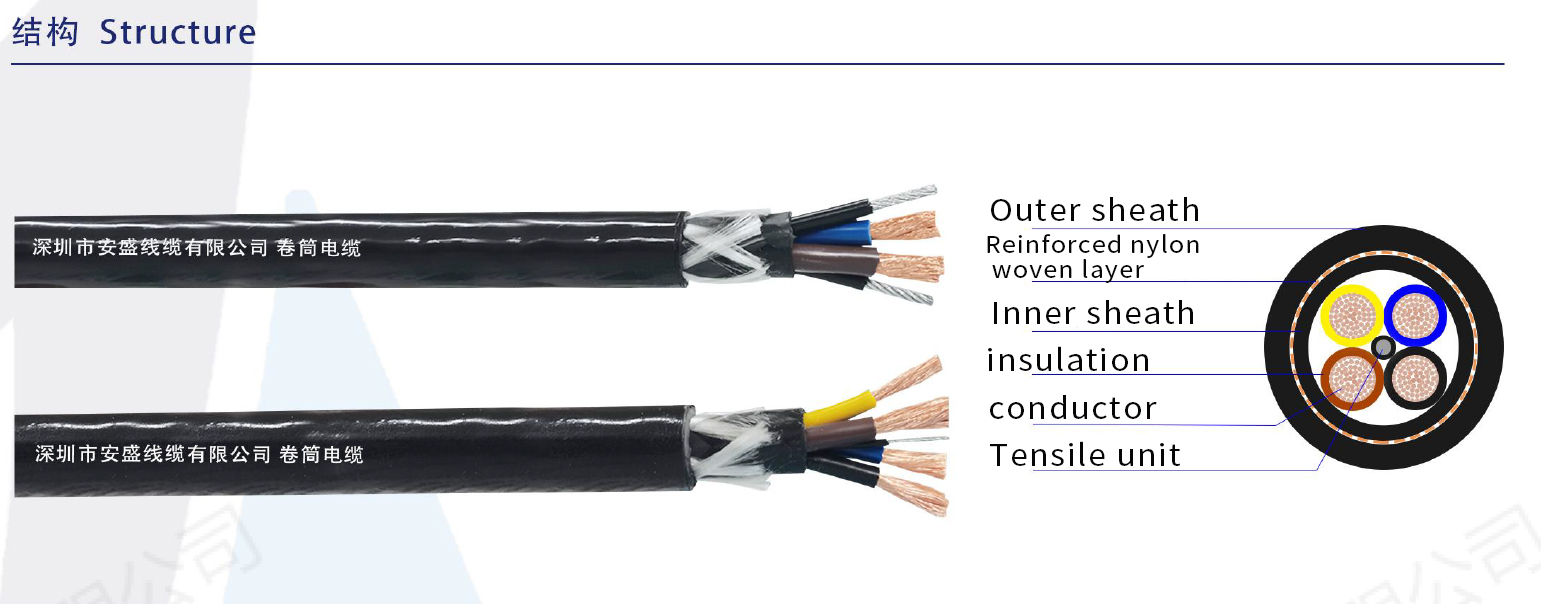

◆ Conductor: using multiple 4N fine copper wire stranded ◆ filling: mixed PVC insulated stranded phosphosteel wire ◆ by: special mixed PVC material ◆ insulation: special mixed PVC material ◆ woven: reinforced tensile nylon wire ◆ core number: 4~8 core

◆ Stringing: twisted into a cable

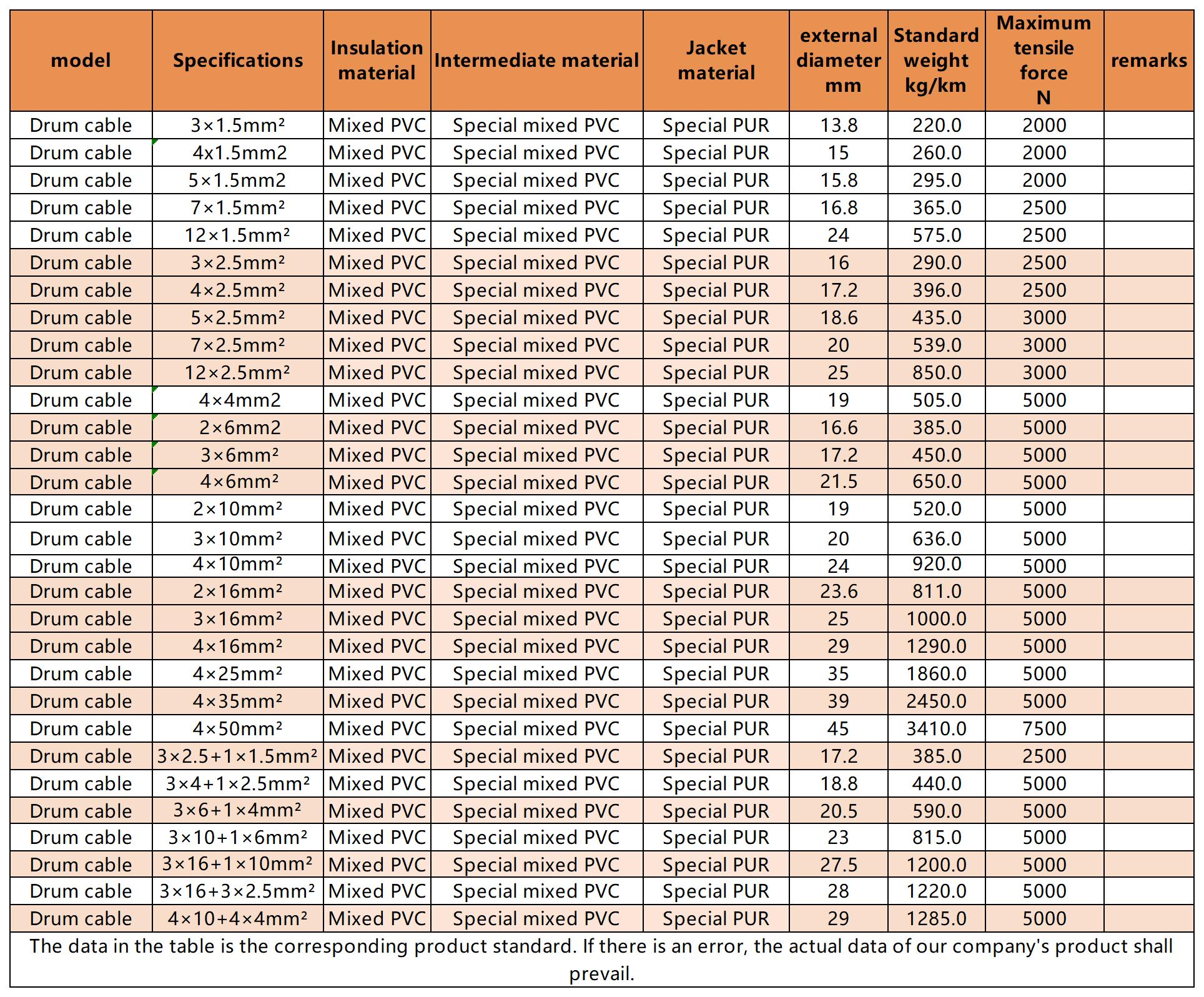

◆ Number square: 1.5 ~ 50 mm ²◆: special PUR material, black ◆ working voltage: 600 / 100V

◆ Long-term permissible working temperature: fixed installation (-50~ + 125℃) mobile installation (-35~ + 125℃)

◆ Minimum bending radius: fixed installation, bending radius of 6 D; moving installation, travel <10 m, the bending radius is 10 D; travel 10 m, the bending radius is 12 D

◆ Product characteristics: environmental protection, oil resistance, corrosion resistance, wear resistance, bending resistance, cold resistance, high elasticity, tensile resistance and other characteristics

Suitable for crane, remachine, tower crane, elevator and other equipment

Testing

voltage test: 3500V

Flexible test: moving speed simulation for bending and moving conditions in the tow chain, fixed in the standard way, bending radius r=6D, s=600mm, speed =90 circle / min; moving speed: overhead speed 3 m/s, sliding speed 2 m/s, more than 20 million times. Insulation sheath performance test: according to the corresponding standard performance of the material.
