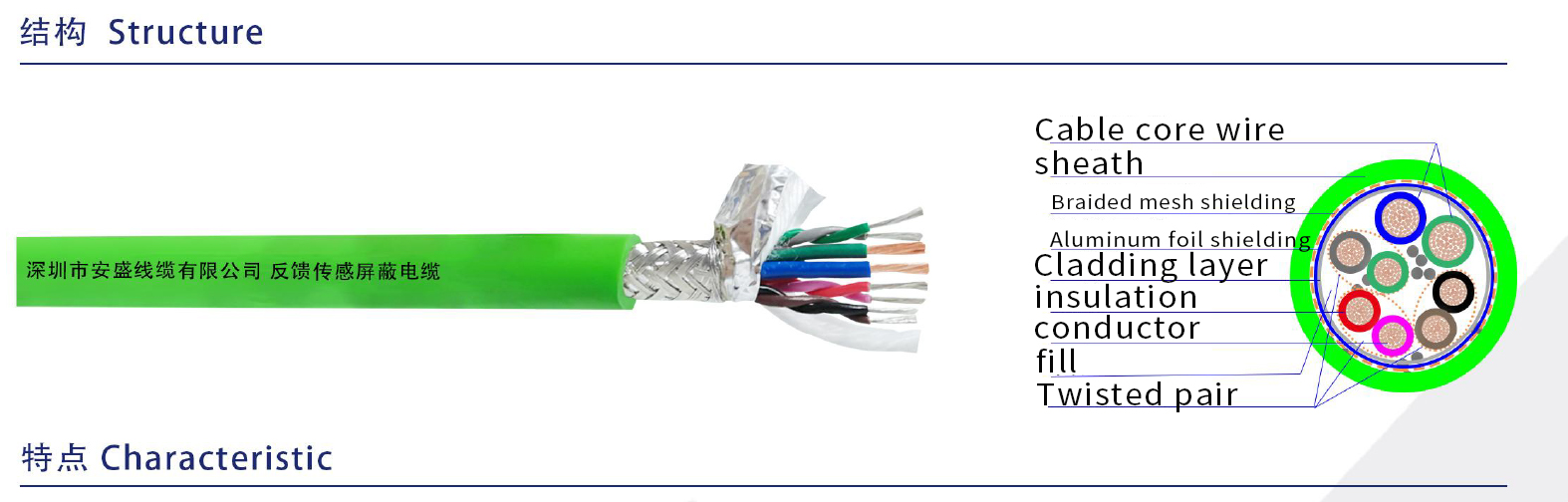

Characteristic

 ◆ Fill: cotton yarn

◆ Conductor: made of multiple 4N grade fine copper wire stranded

◆ Cover layer: non-woven fabric

◆ Insulation: special HDPE material ◆ core number: 4 core, 8 core

◆ Shielding:; aluminum foil & aluminum foil + tin-plated copper braided ◆ conductor square number: 24 ~ 22 AWG

◆ Stranded: 2 core twisted + twisted into a cable

◆ External: special PVC mixture or PUR, black, orange, green

◆ Characteristic impedance: 120 ohms

◆ Long-term permissible working temperature: fixed installation (-30~ + 105℃) mobile installation (-20~ + 105℃) (mixed PVC quilt) ◆ Long-term allowable working temperature: fixed installation (-50~ + 125℃) mobile installation (-35~ + 125℃) (special PUR external quilt)

◆ Minimum bending radius: fixed installation, bending radius of 6.5 D; moving installation, for travel of <10 m, the bending radius is 7.5 D; for stroke of 10 m, the bending radius is 10 D

◆ Product characteristics: environmental protection, oil resistance, corrosion resistance, wear resistance, bending resistance, cold resistance, high elasticity, anti-interference (shielding type) and other characteristics ◆ suitable for industrial Ethernet and other fields

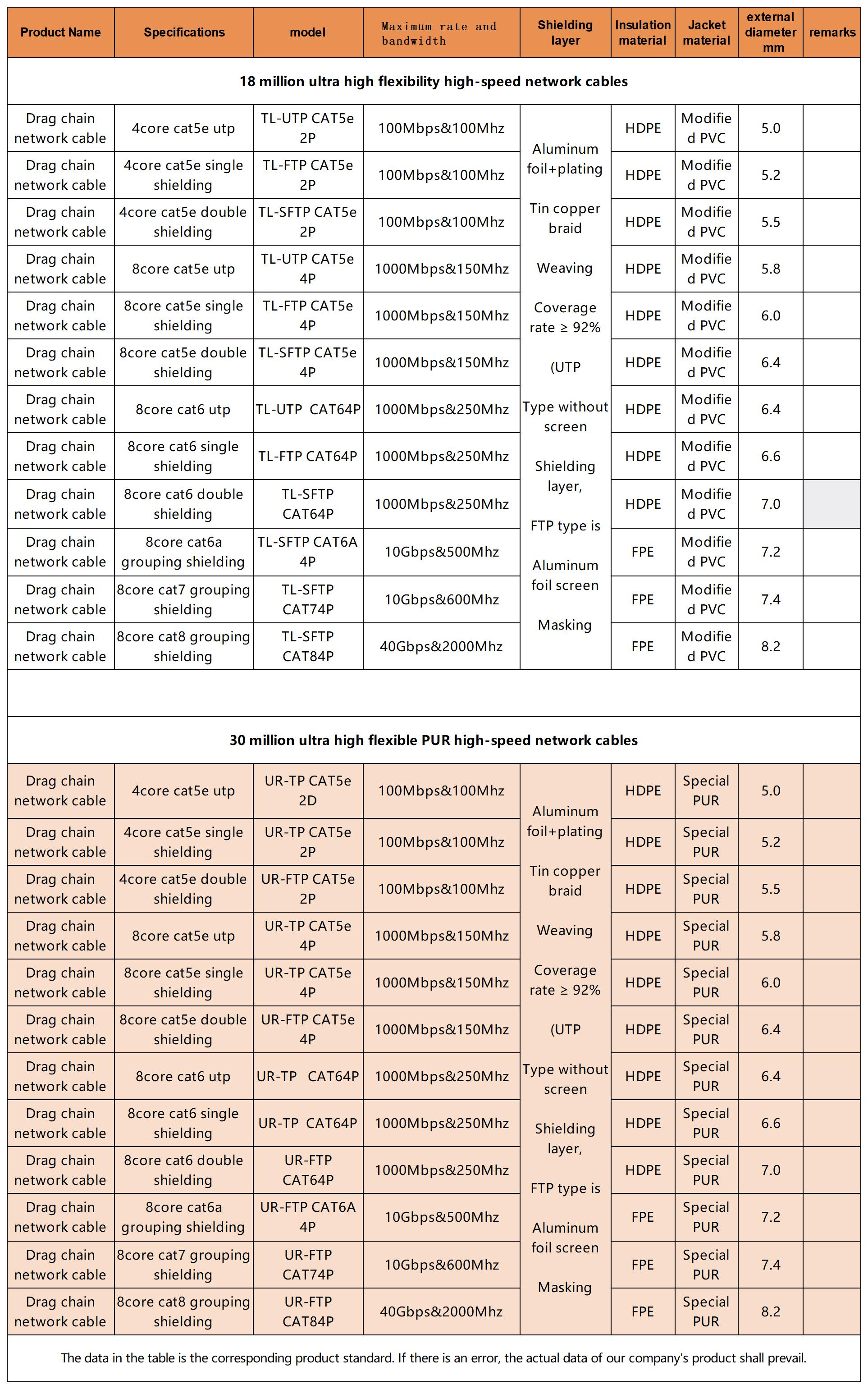

Product model: UTP FTP SFTP SSTP STP CAT5e CAT6 CAT6A CAT7 CAT8...

Testing

Testing equipment: Fluke, network analyzer, etc.

Flexible test: moving speed simulation bending and moving conditions in the tow chain, fixed in the standard way, bending radius r=6D, s=600mm, speed =90 times / min; moving speed: overhead speed 3 m/s, sliding speed 2 m/s, 18 million or more than 30 million times.
