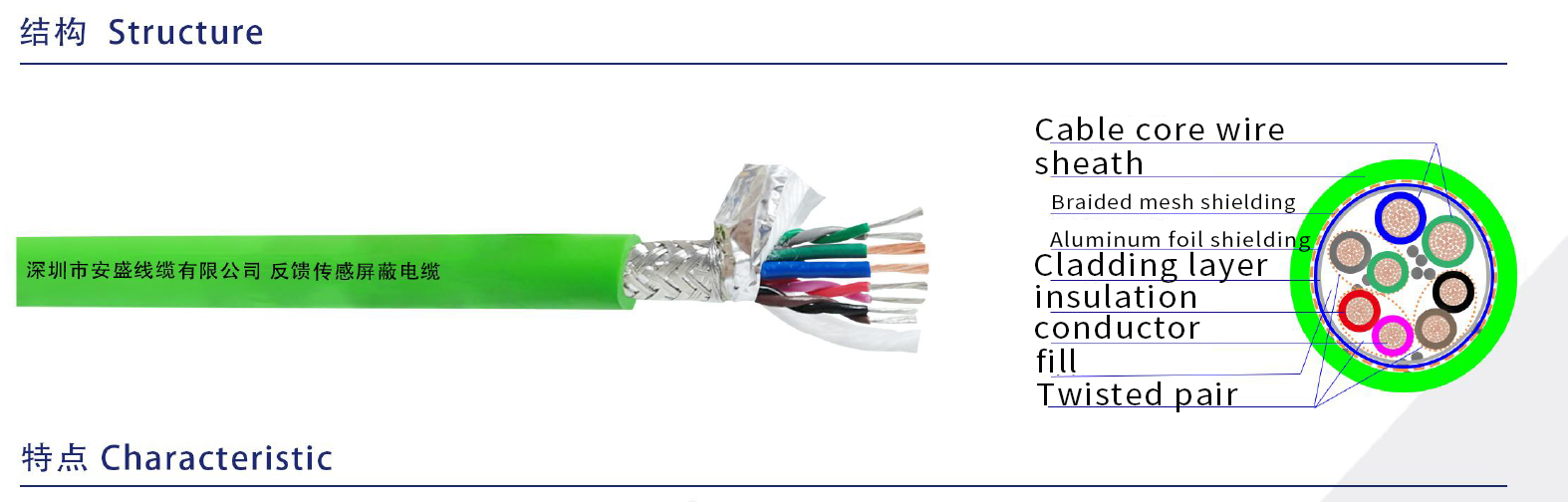

Characteristic

 ◆ Fill: cotton yarn

◆ Conductor: using multiple 0.08mm 4N grade fine copper wire stranded

◆ Cadding: non-woven fabric

◆ Insulation: special mixed PVC material (color) ◆ shield: aluminum foil + tinned copper woven ◆ core number: 8~12 cores

◆ Stranded: 2 core twisted + twisted into a cable

◆ Number of conductor squares: 0.15~1.0mm²

◆ External quilt: special PVC mixture, green ◆ rated voltage: 300 / 300V

◆ Long-term permissible working temperature: fixed installation (30~ + 105℃); mobile installation (-20~ + 105℃)

◆ Minimum bending radius; fixed installation, bending radius of 6 D; moving installation, travel <10 m, the bending radius is 10 D; travel 10 m, the bending radius is 12 D

◆ Product characteristics: environmental protection, oil resistance, corrosion resistance, wear resistance, bending resistance, anti-interference (shielding type) and other characteristics ◆ suitable for frequency converter, mechanical arm, mechanical track, lift, circulation dragging equipment and devices.

Testing

Test Voltage: 2000V / 5min (10A), 1500V / 5min (10A)

Flexible test: moving speed simulation for bending and moving conditions in the tow chain, fixed in the standard way, bending radius r=6D, s=600mm, speed =90 times / min; moving speed: overhead speed 3 m/s, sliding speed 2 m/s, more than 18 million times. Insulation sheath performance test: according to the corresponding standard performance of the material.
