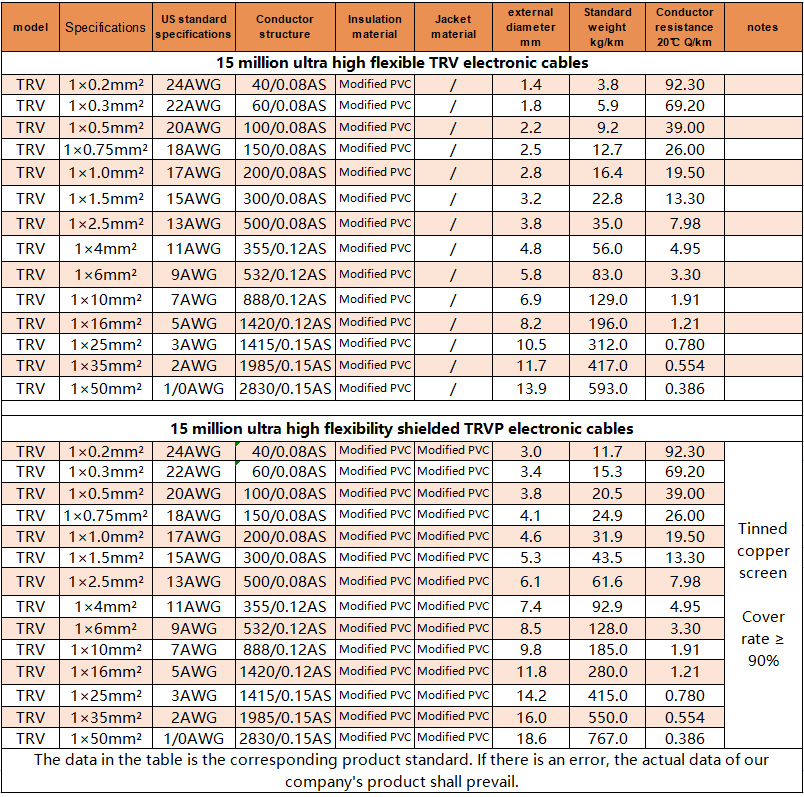

Characteristic

◆ Total margin color: color (12 colors)

◆ Conductor: 0.08mm 4N epistaxis anaerobic copper cline

◆ Jingyuan: special mixed PVC material ◆ core number: 1 core

◆ Margin color: color (12 colors) ◆ conductor square number: 0.2~~50mm³

◆ The fixed voltage is 300 / 300V & 300 / 500V & 450 / 750V

◆ Long-term permissible working temperature: fixed installation (30~ + 105℃): mobile installation (20~ + 105℃)

◆ Minimum bending radius: national installation, bending flat diameter is 6 D, mobile installation, travel <10 m, bending flat diameter is 7.5 D; travel> 10 m, bending flat diameter is 10 D

◆ Product characteristics: environmental protection, oil resistance, wear resistance, bending resistance, high flexibility, anti-interference (shielding type) and other characteristics

 Testing

Voltage test: 2KV / 5min (10A] (AC)&1.5KV/5min (10A), AC)

warp test: mobile shock simulation bend the bar in the reinforcement to test the sample from the finished product, fixed in the standard way, Qingqujing (=7.5D, s=600mm, speed =90 circle / min; moving speed: overhead speed of 3 m/s, sliding speed of 2 m/s, more than 15 million times, desperate sheath performance test: unified materials corresponding to standard maintenance
