Characteristic

◆ Conductor: Multiple 4N grade oxygen free copper wires twisted multiple times

Rated voltage: 300V/300&300/500V

◆ Insulation: Modified mixed PVC material

Temperature range: fixed placement: -30-+90 ℃; Mobile installation: -15-+90 ℃

◆ Filling: Twisted cotton rope

◆ Discharge detection: 2KV/5min (AC)&1.5KV/5min (AC)

◆ Package: non-woven fabric

◆ Number of bends: Movement speed: overhead speed of 3m/s, sliding speed of 2m/s, over 15 million times

◆ Shielding: aluminum foil wrapping+90%+tin plated copper wire weaving

◆ Minimum bending radius: fixed installation, bending radius 6XD

◆ Outer cover: Modified mixed PVC material

◆ Mobile installation, with a bending radius of 7.5XD when the stroke is less than 10 meters; When the stroke is ≥ 10 meters, the bending radius is 10XD

◆ Surface technology: Mist surface (frosted surface, can be customized according to the usage environment)

◆ Strong anti-interference ability ensures signal transmission performance

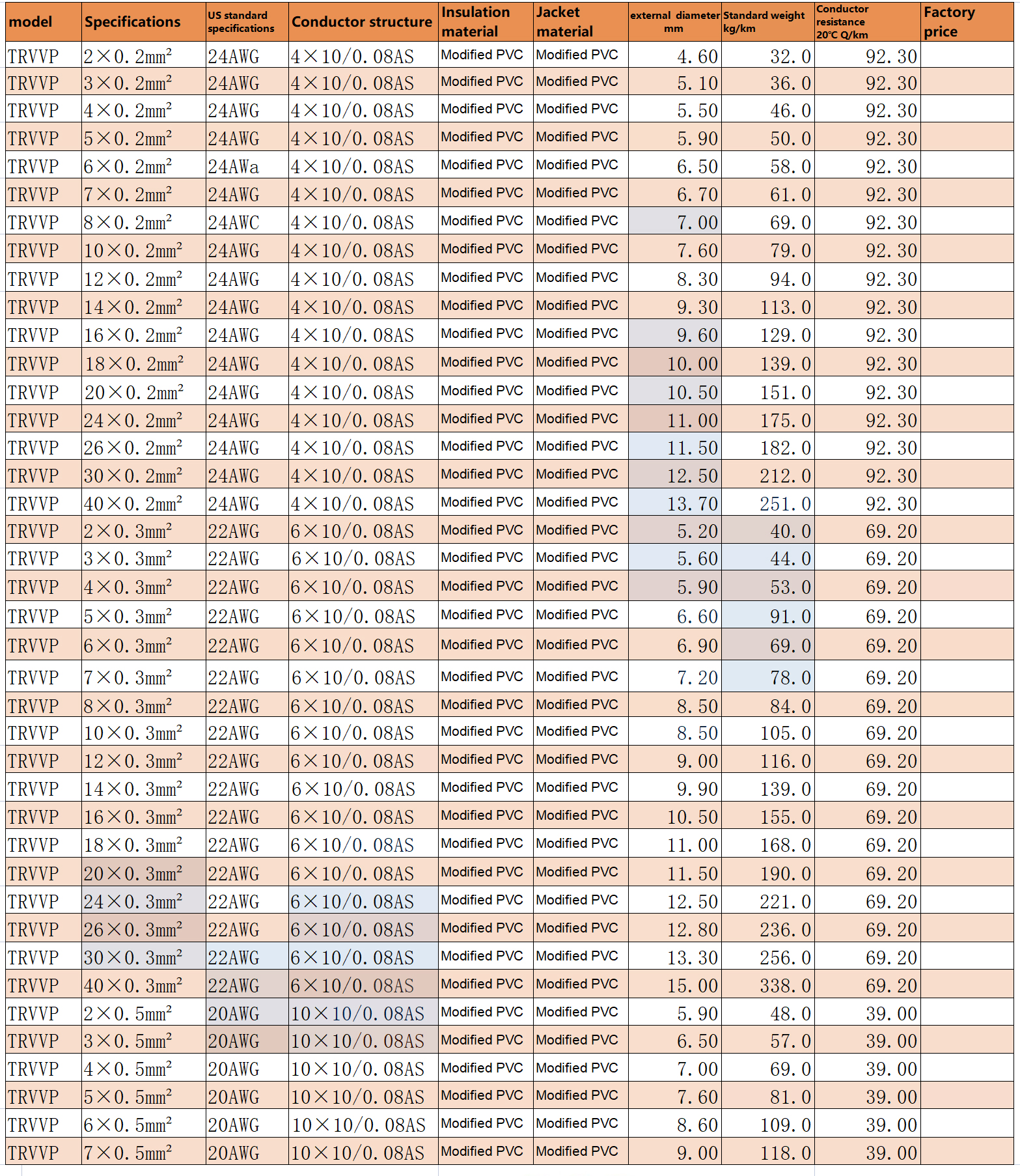

◆ Number of cores: Conventional inventory 2-40 cores

◆ Number of conductor squares: Conventional inventory 0.15-6mm ² (26～9awg)

 Application

Ultra flexible high-speed power supply drag chain cable is mainly used as control and power transmission system, widely used in sensor technology, computer and instrument control equipment and control engineering; For example, coordinate machines such as handheld devices, machine tools, woodworking machinery, carving machines, laser printers, etc; Robotic arms, robotic arm track type machinery, connecting rod circulation devices, reciprocating machines, elevators and other reciprocating mechanisms, circulating drag devices, and so on.

Description

15 million times of drag chain shielded ultra-high flexible power cables are mainly used as control and power transmission systems, widely used in sensor technology, computer and instrument control equipment and control engineering;

Three or more cores are equipped with green/yellow protective grounding wires. The core wires are twisted into a cable with a short pitch, and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference

Disturbance. The outer sheath can be customized in color according to needs.

The sheath has the characteristics of environmental protection, oil resistance, wear resistance, and bending resistance. Mobile bending test standard: simulate various conditions of bending and moving in a drag chain for testing, taking from the finished product

Sample, fixed according to standard method, bending radius r=7.5D, s=600mm, speed=90 cycles/min
